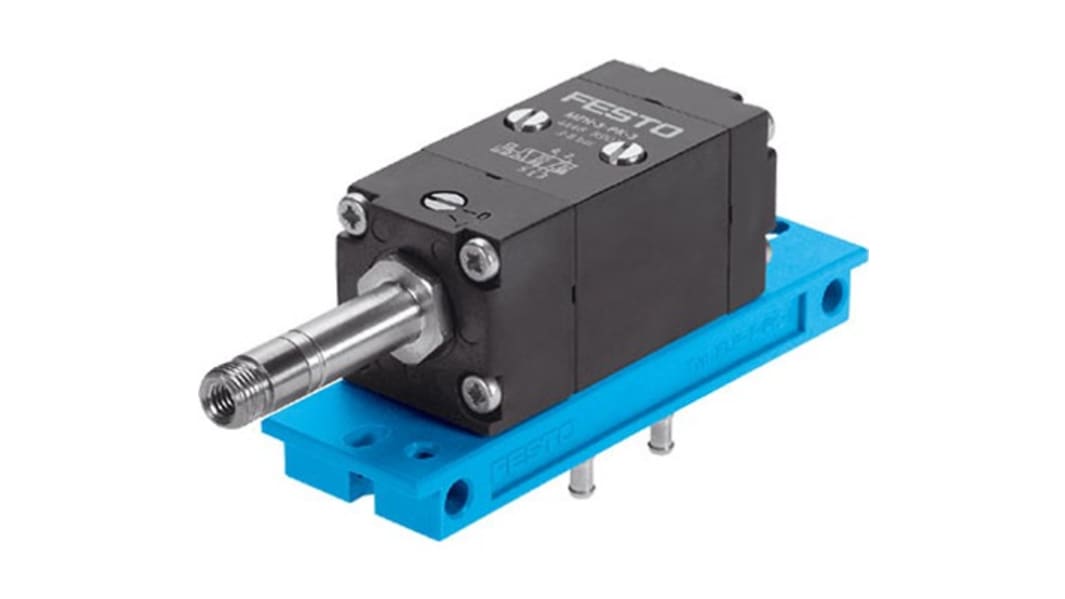

Festo Pneumatic Solenoid Valve - 5/2 Monostable MFH-5-PK-3 Series

Bekijk deze categorie

Subtotaal (1 eenheid)*

€ 238,27

(excl. BTW)

€ 288,31

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Op voorraad
  • Plus verzending 16 stuk(s) vanaf 16 maart 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks
Per stuk
1 +€ 238,27

*prijsindicatie

RS-stocknr.:
288-7779
Fabrikantnummer:
MFH-5-PK-3
Fabrikant:
Festo
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

Festo

Product Type

Pneumatic Solenoid Valve

Port Type

Pneumatic

Port Size

PK-3

Series

MFH-5-PK-3

Seal Material

Nitrile Rubber (NBR)

Mount Type

Base, Through Hole

Number of Ports

5

Body Material

Anodised Aluminium

Maximum Operating Pressure

8 bar

Maximum Flow Rate

105L/min

Minimum Pilot Pressure

3bar

Minimum Operating Temperature

-10°C

Valve Function

5/2 Monostable

Maximum Operating Temperature

60°C

Hazardous Area Certification

No

Standards/Approvals

RoHS

Number of Positions

2

Land van herkomst:
DE
The Festo Solenoid valve is a 5/2-way, monostable valve with a standard nominal flow rate of 105 l/min. It operates at an operating pressure of 3 bar to 8 bar and is designed with a poppet seat for efficient performance. Suitable for use with compressed air, it ensures reliable operation in various industrial applications.

5/2-way valve design for versatile functionality

Standard nominal flow rate of 105 l/min for efficient performance

Poppet seat design for reliable operation

Soft sealing principle for enhanced durability

Switching time off 22 ms and on 10 ms for quick response

Suitable for use with compressed air to ISO 8573-1:2010 standards

Weight of 270 g for easy handling and installation
