Festo Solenoid Valve - 2 x 3/2 Closed, Monostable Electric Metric VSVA Series 24V
- RS-stocknr.:
- 203-7528
- Fabrikantnummer:
- VSVA-B-T32C-AH-A2-1R5L
- Fabrikant:
- Festo
Subtotaal (1 eenheid)*
€ 185,96
(excl. BTW)
€ 225,01
(incl. BTW)
GRATIS bezorging voor bestellingen vanaf € 90,00
Op voorraad
- 1 stuk(s) klaar voor verzending
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 185,96 |
*prijsindicatie
- RS-stocknr.:
- 203-7528
- Fabrikantnummer:
- VSVA-B-T32C-AH-A2-1R5L
- Fabrikant:
- Festo
Specificaties
Datasheets
Wetgeving en conformiteit
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Festo | |
| Product Type | Solenoid Valve | |
| Port Size | 18 mm | |
| Port Type | Push-in | |
| Connection Thread Standard | Metric | |
| Actuation Type | Electric | |
| Solenoid Type | Single | |
| Seal Material | Nitrile Rubber (NBR) | |
| Series | VSVA | |
| Voltage | 24V | |
| Mount Type | Base | |
| Number of Ports | 3 | |
| Body Material | Die Cast Aluminium | |
| Maximum Operating Pressure | 10 bar | |
| Minimum Pilot Pressure | 3bar | |
| Minimum Operating Temperature | -5°C | |
| Port Gender | Male | |
| Maximum Pilot Pressure | 10bar | |
| Maximum Flow Rate | 550L/min | |
| Valve Function | 2 x 3/2 Closed, Monostable | |
| Solenoid Power Consumption | 1.6W | |
| Maximum Operating Temperature | 50°C | |
| Length | 140mm | |
| Height | 58.3mm | |
| Standards/Approvals | cULus, RoHS | |
| Width | 18mm | |
| Hazardous Area Certification | NO | |
| Number of Positions | 2 | |
| Electrical Connection Type | Central Plug | |
| Alles selecteren | ||
|---|---|---|
Merk Festo | ||
Product Type Solenoid Valve | ||
Port Size 18 mm | ||
Port Type Push-in | ||
Connection Thread Standard Metric | ||
Actuation Type Electric | ||
Solenoid Type Single | ||
Seal Material Nitrile Rubber (NBR) | ||
Series VSVA | ||
Voltage 24V | ||
Mount Type Base | ||
Number of Ports 3 | ||
Body Material Die Cast Aluminium | ||
Maximum Operating Pressure 10 bar | ||
Minimum Pilot Pressure 3bar | ||
Minimum Operating Temperature -5°C | ||
Port Gender Male | ||
Maximum Pilot Pressure 10bar | ||
Maximum Flow Rate 550L/min | ||
Valve Function 2 x 3/2 Closed, Monostable | ||
Solenoid Power Consumption 1.6W | ||
Maximum Operating Temperature 50°C | ||
Length 140mm | ||
Height 58.3mm | ||
Standards/Approvals cULus, RoHS | ||
Width 18mm | ||
Hazardous Area Certification NO | ||
Number of Positions 2 | ||
Electrical Connection Type Central Plug | ||
- Land van herkomst:
- DE

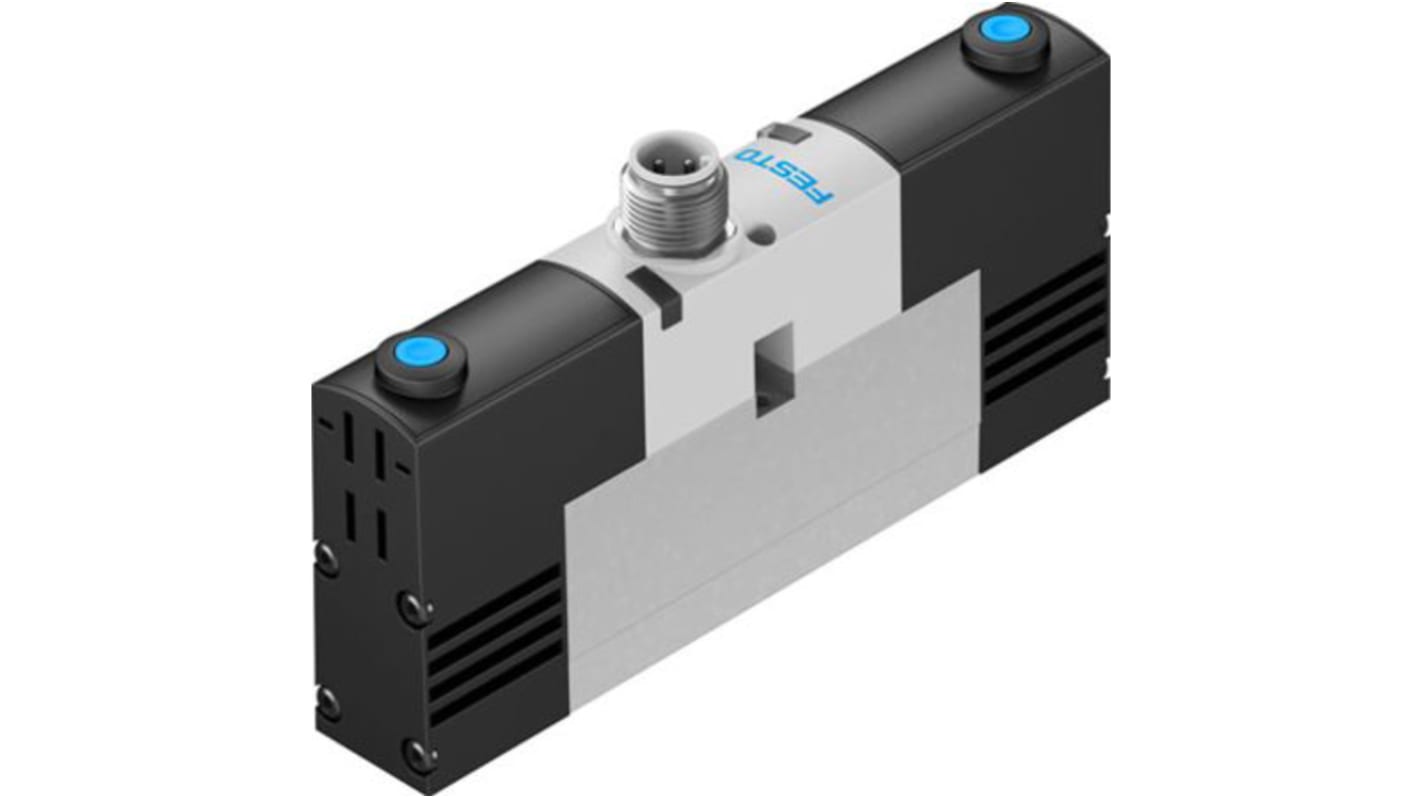

The Festo solenoid valve VSVA-B-T32C-AH-A2-1R5L with central plug, round design M12x1. It has standards-based valve to ISO 5599-1 and sub-base. The valve has 2 single solenoid valves in one housing.
Valve function=2x3/2 closed, monostable, Type of actuation=electrical, Width=18 mm, Standard nominal flow rate=400 l/min, Operating pressure=3 - 8 bar
