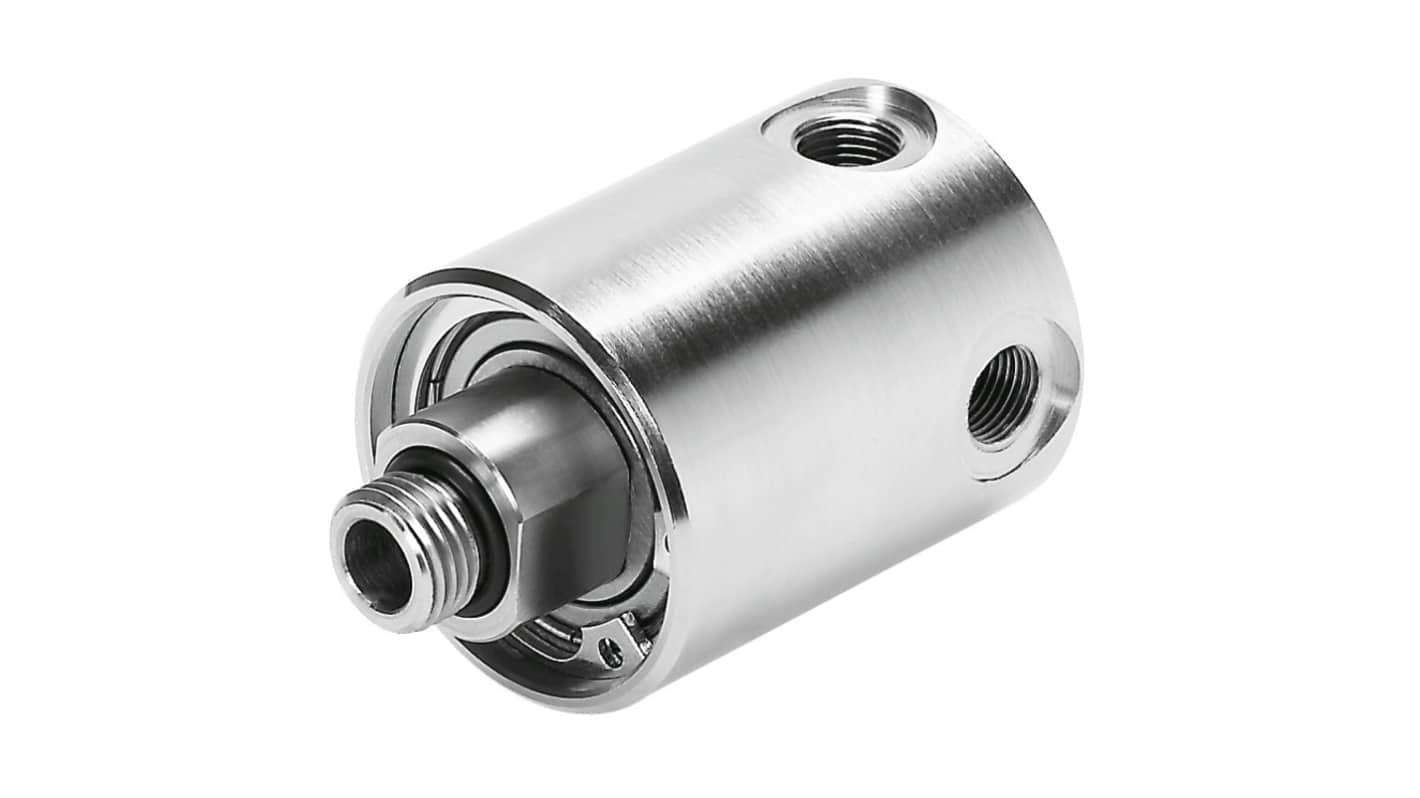

Festo GF-1/8-M5 Pneumatic Rotary Union, G 1/8, M5

RS-stocknr.:: 289-0880
Fabrikantnummer:: GF-1/8-M5
Fabrikant:: Festo

Festo GF-1/8-M5 Pneumatic Rotary Union, G 1/8, M5

Subtotaal (1 eenheid)*

€ 174,41

(excl. BTW)

€ 211,04

(incl. BTW)

GRATIS bezorging voor bestellingen vanaf € 75,00

Tijdelijk niet op voorraad

Verzending vanaf 29 juli 2025

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 +	€ 174,41

*prijsindicatie

RS-stocknr.:: 289-0880
Fabrikantnummer:: GF-1/8-M5
Fabrikant:: Festo

Festo GF-1/8-M5 Series Pneumatic Rotary Union, 10 bar Maximum Operating Pressure, 3000rpm Maximum Rotational Speed - GF-1/8-M5, Numeric Part Number: 539290

This pneumatic rotary union is designed for efficient air distribution in various industrial applications. Featuring a nominal size of 4.1mm, it connects using G1/8 or M5 threaded connections. Constructed from high-alloy steel and brass, this union operates effectively within a temperature range of -10°C to +80°C, making it a reliable choice for multiple environments.

Features & Benefits

• Functions effectively with compressed air up to 10 bar
• Supports a maximum rotational speed of 3000 rpm
• Compatible with ISO 8573-1:2010 compliant air
• Optional lubricated operation enhances performance
• Low corrosion stress ensures longevity in service
• Efficient flow rates of up to 2250 l/min available

Applications

• Utilised in automated machinery for precise air delivery
• Suitable for requiring high-speed rotation
• Employed in electronics assembly for effective pneumatic connections
• Ideal for mechanical systems demanding reliable performance under pressure

What is the maximum pressure this union can handle?

It can safely operate at a maximum pressure of 10 bar, ensuring reliable function in demanding applications.

How does the construction material affect performance?

The use of alloy steel for the shaft and nickel-plated brass for the housing provides excellent durability and corrosion resistance, making it suitable for harsh environments.

Is lubrication necessary for optimal function?

While lubricated operation can enhance performance, the union can also function effectively without lubrication, depending on the application requirements.

What are the implications of the operating temperature range?

The specified temperature range of -10°C to +80°C allows for diverse usage scenarios, ensuring reliability across various industrial environments.

How does this rotary union contribute to automation efficiency?

Its high rotational speed and efficient airflow facilitate quick and precise movements in automated systems, thereby optimising operational efficiency.

Kenmerk	Waarde
Threaded Connection	G 1/8, M5
Threaded Connection - Thread Size	1/8 in, 5 in
Manufacturer Series	GF-1/8-M5
