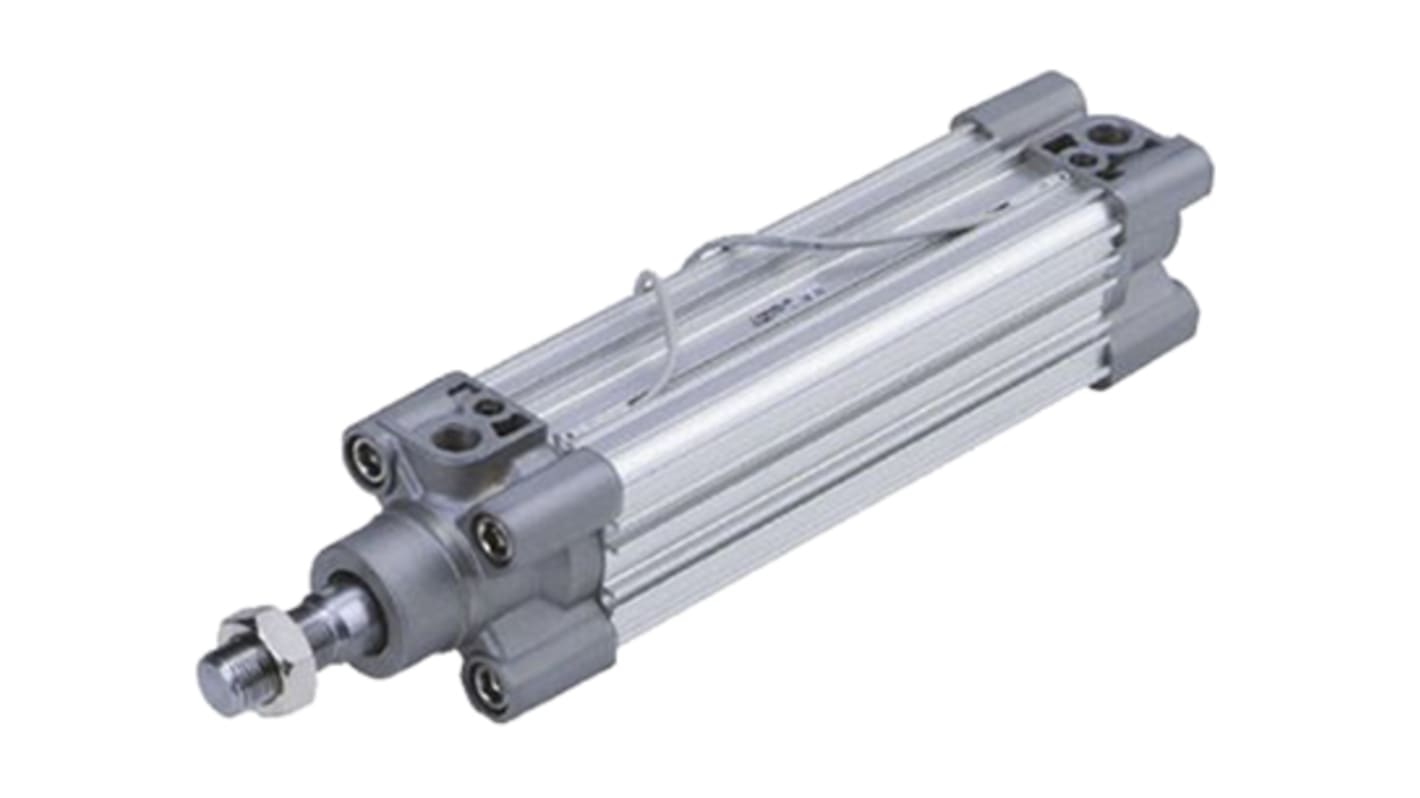

SMC Pneumatic Piston Rod Cylinder - 80mm Bore, 100mm Stroke, CP96 Series, Double Acting
- RS-stocknr.:
- 917-8764
- Fabrikantnummer:
- CP96SDB80-100C
- Fabrikant:
- SMC
Prijs Per stuk**
€ 176,22
(excl. BTW)
€ 213,23
(incl. BTW)
1 op voorraad - levertijd is 1 werkdag(en).*
* Bezorgdata kunnen veranderen afhankelijk van de gekozen hoeveelheid en het bezorgadres.
GRATIS bezorging voor bestellingen vanaf 75,00 €
Voorraad checken
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 176,22 |
**prijsindicatie
- RS-stocknr.:
- 917-8764
- Fabrikantnummer:
- CP96SDB80-100C
- Fabrikant:
- SMC
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | SMC | |
| Manufacturer Series | CP96 | |
| Stroke | 100mm | |
| Action | Double | |
| Bore | 80mm | |
| Port Connection | G 3/8 | |
| Cushioning Type | Air | |
| Dimensions | 318 x 99 x 99mm | |
| Height | 99mm | |
| Length | 318mm | |
| Width | 99mm | |
| Maximum Operating Pressure | 1 MPa | |
| Absolute Maximum Pressure | 1.5MPa | |
| ISO Standard | 4414 | |
| Stroke Interval Weight | 0.49 kg @ 50 mm Stroke | |
| Weight | 3.9kg | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +70°C | |
Alles selecteren | ||
|---|---|---|
Merk SMC | ||
Manufacturer Series CP96 | ||
Stroke 100mm | ||
Action Double | ||
Bore 80mm | ||
Port Connection G 3/8 | ||
Cushioning Type Air | ||
Dimensions 318 x 99 x 99mm | ||
Height 99mm | ||
Length 318mm | ||
Width 99mm | ||
Maximum Operating Pressure 1 MPa | ||
Absolute Maximum Pressure 1.5MPa | ||
ISO Standard 4414 | ||
Stroke Interval Weight 0.49 kg @ 50 mm Stroke | ||
Weight 3.9kg | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +70°C | ||
