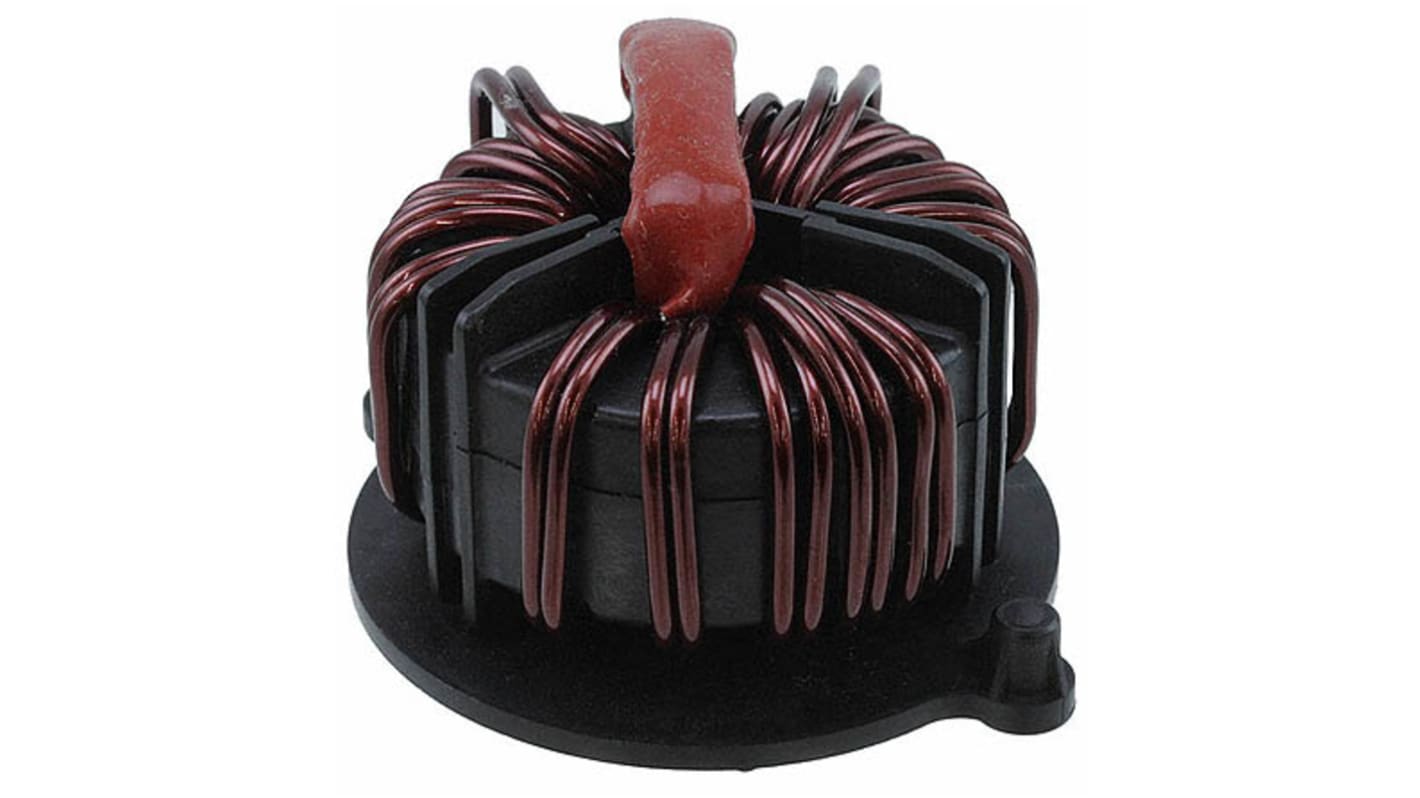

Schaffner 420 μH -30 → +50% Leaded Inductor, Max SRF:400Hz, 36A Idc, 1.4mΩ Rdc, RB
- RS-stocknr.:
- 170-5171
- Fabrikantnummer:
- RB6132-36-0M4
- Fabrikant:
- Schaffner
384 op voorraad - levertijd is 4 werkdag(en).
Toegevoegd
Prijs Per stuk (in een doos van 32)
€ 24,985
(excl. BTW)
€ 30,232
(incl. BTW)
| Aantal stuks | Per stuk | Per Doos* |
| 32 + | € 24,985 | € 799,52 |
| *prijsindicatie | ||
- RS-stocknr.:
- 170-5171
- Fabrikantnummer:
- RB6132-36-0M4
- Fabrikant:
- Schaffner
Datasheets
Wetgeving en conformiteit
Productomschrijving
Schaffner RB Series 3 Phase Common Mode Chokes
Characteristics
Radial through-hole inductor in vertical or horizontal PCB format
Maximum current up to 50A
High saturation core material
Small size and open construction for convection or forced cooling
Operating temperature: -40°C → +125°C
Maximum current up to 50A
High saturation core material
Small size and open construction for convection or forced cooling
Operating temperature: -40°C → +125°C
Applications
EMI noise filtering on AC and DC lines
Switch mode power supplies and UPS
Charging stations, Fast chargers and Convertors
Power supply filtering for midsize power range drives
Switch mode power supplies and UPS
Charging stations, Fast chargers and Convertors
Power supply filtering for midsize power range drives
Schaffner Leaded Inductors (Chokes)
Specificaties
Kenmerk | Waarde |
|---|---|
| Inductance | 420 μH |
| Maximum DC Current | 36A |
| Mounting Type | Radial |
| Maximum DC Resistance | 1.4mΩ |
| Tolerance | -30 → +50% |
| Length | 67.9mm |
| Depth | 66.9mm |
| Height | 52mm |
| Dimensions | 67.9 x 66.9 x 52mm |
| Maximum Self Resonant Frequency | 400Hz |
| Lead Pitch | 5.08mm |
| Series | RB |
| Lead Diameter | 2.2mm |
| Minimum Operating Temperature | -40°C |
| Terminal Type | PC Pin |
| Maximum Operating Temperature | +125°C |
