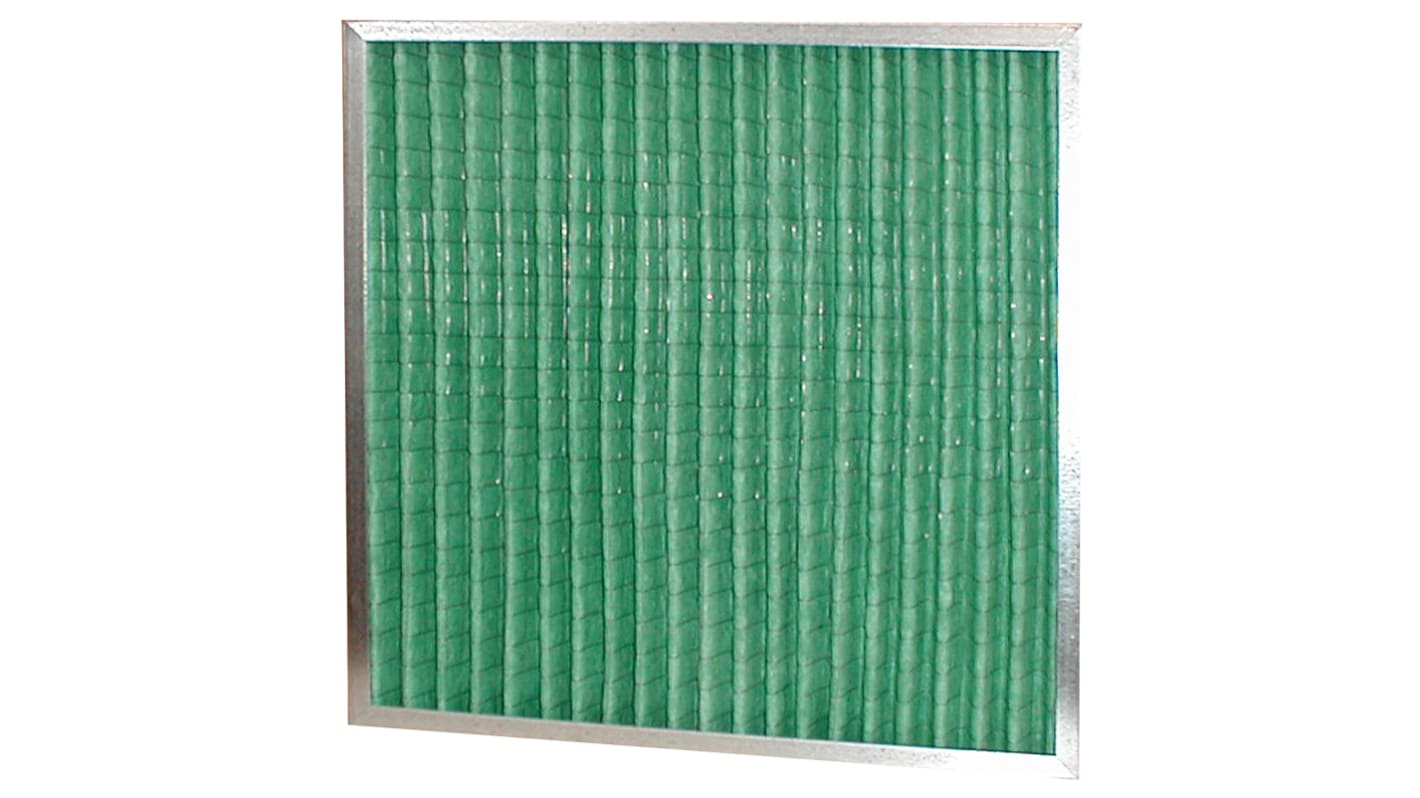

Camfil AeroPleat I Metal Pleated Panel Filter, Cotton, Synthetic Fibre Media, G4 Grade, 592 x 592 x 50mm

  • RS-stocknr. 880-2422
  • Fabrikantnummer 1040.18.00
  • Fabrikant Camfil
Datasheets
Wetgeving en conformiteit
N.v.t.
Productomschrijving

Aeropleat Metal Panel Filter

Camfil AeroPleat Metal panel filters exhibit a low pressure drop and feature robust construction for reliable operation. Applications include prefiltration for large particles and in air handling units.

Rigid galvanised steel frame for specific applications
Fire classified M1
Gravimetic filter
Filter material: Mixture of cotton and synthetic fibre
Efficiency EN779:2012: G4
Final pressure drop: 250 Pa
Maximum continuous operating temperature: 70°C
Mounting system: Camfil universal frames assembled

Approvals

EN779:2012

Camfil HVAC Air Filters

Specificaties
Kenmerk Waarde
Filter Type Pleated Panel
Actual Dimensions 592 x 592 x 50mm
Filter Grade G4
Initial Pressure Drop 55Pa
Final Pressure Drop 250Pa
Case Material Galvanised Steel
Media Material Cotton, Synthetic Fibre
Actual Height 592mm
Series AeroPleat I Metal
Actual Depth 50mm
Actual Width 287mm
tijdelijk niet op voorraad – nieuwe voorraad verwacht op 25/02/2020, met een levertijd van 2 à 3 werkdagen.
Prijs Each (In a Pack of 5)
26,704
(excl. BTW)
32,312
(incl. BTW)
Aantal stuks
Per stuk
Per pak*
5 +
26,704 €
133,52 €
*prijsindicatie
