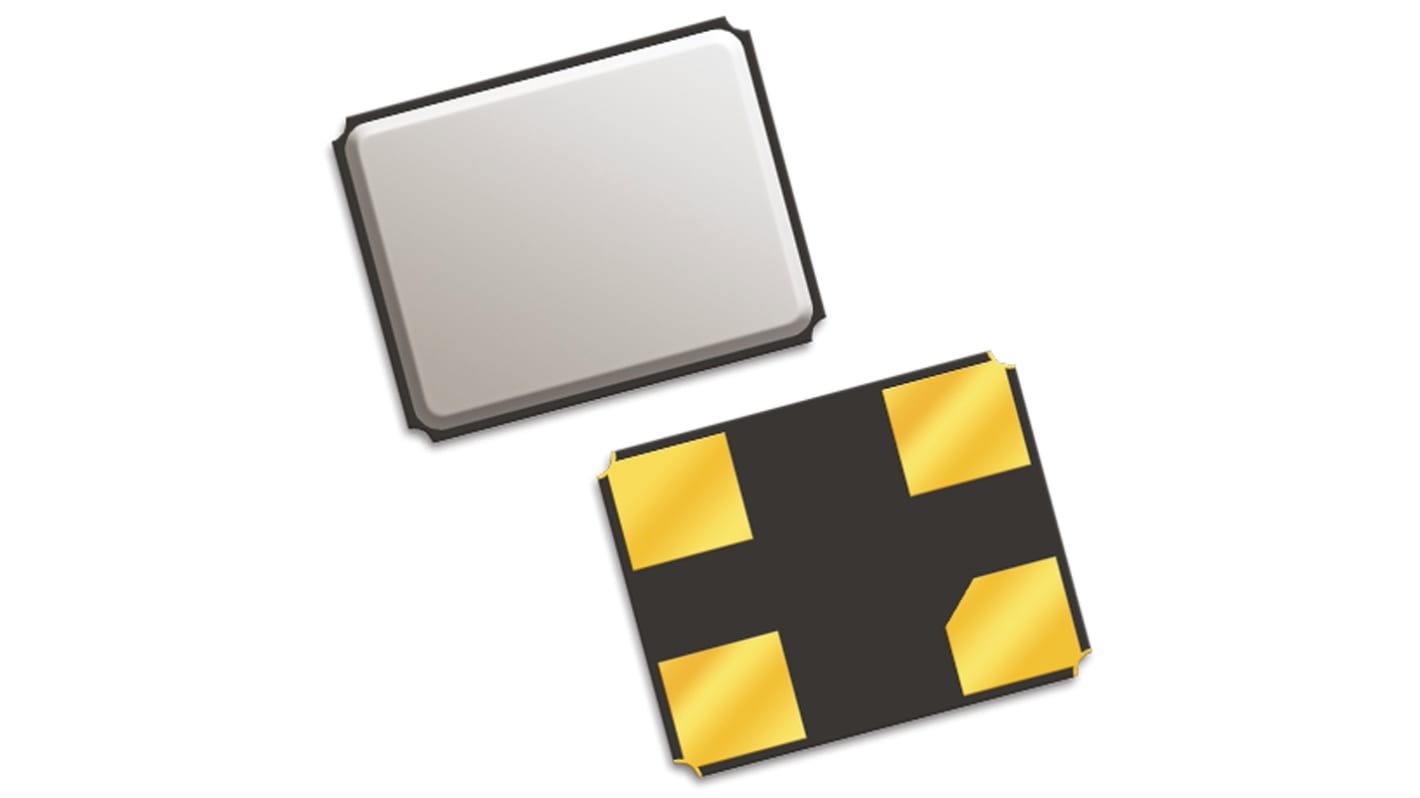

QT Quarztechnik 29.4912MHz Crystal ±10ppm SMD 4-Pin 3.4 x 2.7 x 0.75mm
- RS-stocknr.:
- 815-0364
- Fabrikantnummer:
- QTC3229.4912FDT1I20R
- Fabrikant:
- QT Quarztechnik
Niet meer leverbaar – bekijk hieronder eventuele alternatieven of neem contact op met onze Customer Service
- RS-stocknr.:
- 815-0364
- Fabrikantnummer:
- QTC3229.4912FDT1I20R
- Fabrikant:
- QT Quarztechnik
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | QT Quarztechnik | |
| Standard Frequency | 29.4912MHz | |
| Mounting Type | Surface Mount | |
| Load Capacitance | 18pF | |
| Package Type | SMD | |
| Pin Count | 4 | |
| Length | 3.4mm | |
| Width | 2.7mm | |
| Height | 0.75mm | |
| Dimensions | 3.4 x 2.7 x 0.75mm | |
| Frequency Tolerance | ±10ppm | |
| Frequency Stability | ±20ppm | |
| Series Resistance | 50Ω | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
Alles selecteren | ||
|---|---|---|
Merk QT Quarztechnik | ||
Standard Frequency 29.4912MHz | ||
Mounting Type Surface Mount | ||
Load Capacitance 18pF | ||
Package Type SMD | ||
Pin Count 4 | ||
Length 3.4mm | ||
Width 2.7mm | ||
Height 0.75mm | ||
Dimensions 3.4 x 2.7 x 0.75mm | ||
Frequency Tolerance ±10ppm | ||
Frequency Stability ±20ppm | ||
Series Resistance 50Ω | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
