RS PRO 2.2μF Electrolytic Tantalum Electrolytic Capacitor 50V dc
- RS-stocknr.:
- 181-4698
- Fabrikant:
- RS PRO
Tijdelijk niet op voorraad – nieuwe voorraad verwacht op 07/05/2024, met een levertijd van 1 werkdag.
Toegevoegd
Prijs Per stuk (in een verpakking 10)
€ 0,859
(excl. BTW)
€ 1,039
(incl. BTW)
| Aantal stuks | Per stuk | Per pak* |
| 10 - 40 | € 0,859 | € 8,59 |
| 50 - 90 | € 0,755 | € 7,55 |
| 100 - 240 | € 0,669 | € 6,69 |
| 250 + | € 0,532 | € 5,32 |
| *prijsindicatie | ||
- RS-stocknr.:
- 181-4698
- Fabrikant:
- RS PRO
Datasheets
Wetgeving en conformiteit
- Land van herkomst:
- CN
Productomschrijving

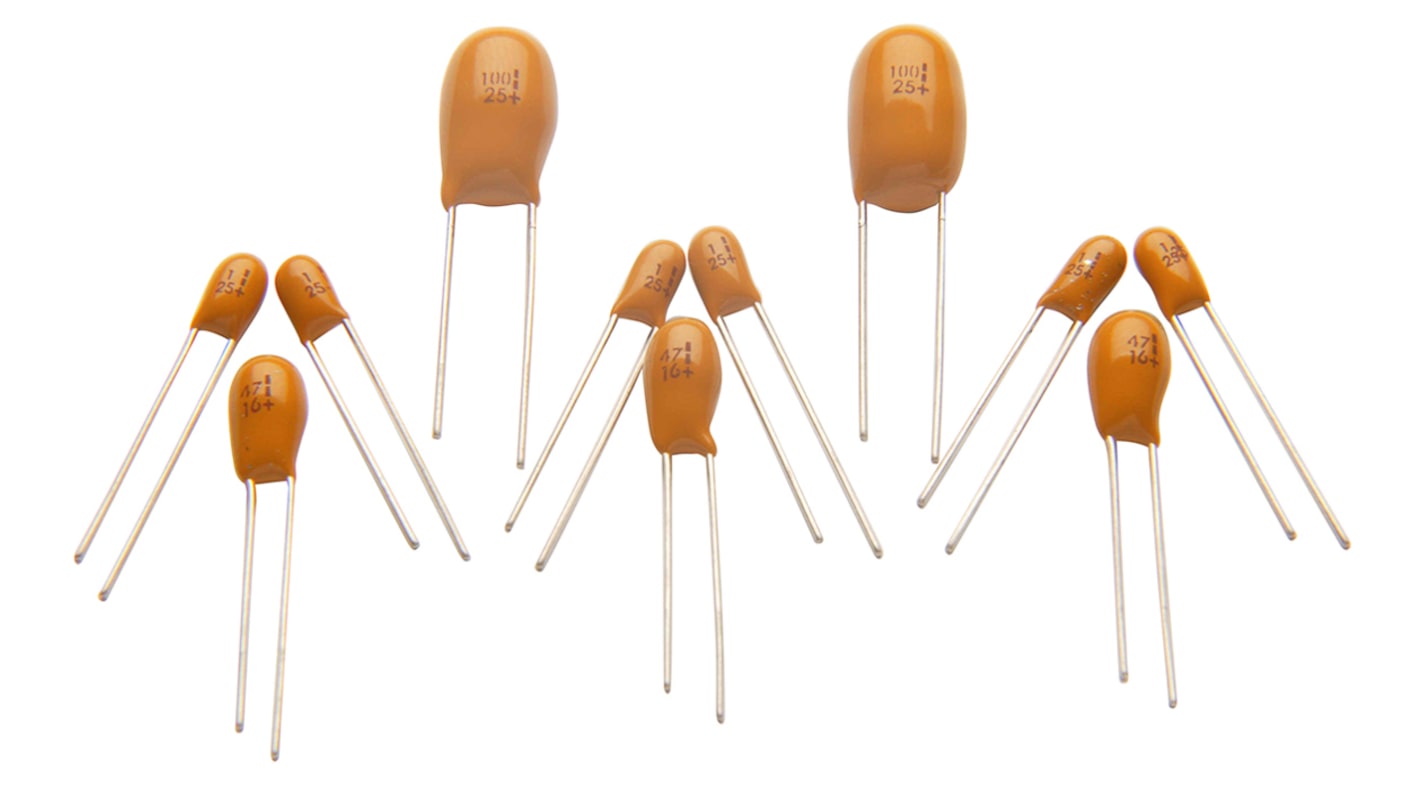

RS PRO Tantalum Capacitor
The RS PRO CB series 2.2μF epoxy-coated solid electrolytic tantalum capacitor has a voltage rating of 50VDC and a leakage current of 500nA. It has dimensions of 5.5mm x 5.5mm x 9.5mm x 0.5mm (L x D x H x lead diameter).
Features and Benefits
• Tolerance: ±20%
• Operating temperature ranges between -55°C and 125°C
• Life test: 1000 hours
• Lead pitch: 2.5mm
• Dissipation factor: Less than 0.06%
• Through hole mount
• Package/Case: C
• Operating temperature ranges between -55°C and 125°C
• Life test: 1000 hours
• Lead pitch: 2.5mm
• Dissipation factor: Less than 0.06%
• Through hole mount
• Package/Case: C
Applications
• Electronics industry
Certifications
• ANSI/ESD S20.20: 2014
• BS EN 61340-5-1: 2007
• BS EN 61340-5-1: 2007
Specificaties
Kenmerk | Waarde |
|---|---|
| Technology | Electrolytic |
| Capacitance | 2.2µF |
| Voltage | 50V dc |
| Mounting Type | Through Hole |
| Package/Case | C |
| Lead Pitch | 2.5mm |
| Tolerance | ±20% |
| Length | 5.5mm |
| Depth | 5.5mm |
| Height | 9.5mm |
| Dimensions | 5.5 x 5.5 x 9.5mm |
| Maximum Operating Temperature | +125°C |
| Electrolyte Type | Solid |
| Leakage Current | 500 nA |
| Polarised | Positive |
| Lead Diameter | 0.5mm |
| Dissipation Factor | <lteq/>0.06% |
| Minimum Operating Temperature | -55°C |
| Dielectric Material Family | Tantalum |
| Tolerance Plus | +20% |
| Tolerance Minus | -20% |
