RS PRO 47μF Electrolytic Tantalum Electrolytic Capacitor 16V dc
- RS-stocknr.:
- 181-4565
- Fabrikant:
- RS PRO
500 op voorraad - levertijd is 1 werkdag(en).
Toegevoegd
Prijs Per stuk (in een zak van 500)
€ 0,528
(excl. BTW)
€ 0,639
(incl. BTW)
| Aantal stuks | Per stuk | Per Zak* |
| 500 - 1000 | € 0,528 | € 264,00 |
| 1500 + | € 0,489 | € 244,50 |
| *prijsindicatie | ||
- RS-stocknr.:
- 181-4565
- Fabrikant:
- RS PRO
Datasheets
Wetgeving en conformiteit
- Land van herkomst:
- CN
Productomschrijving

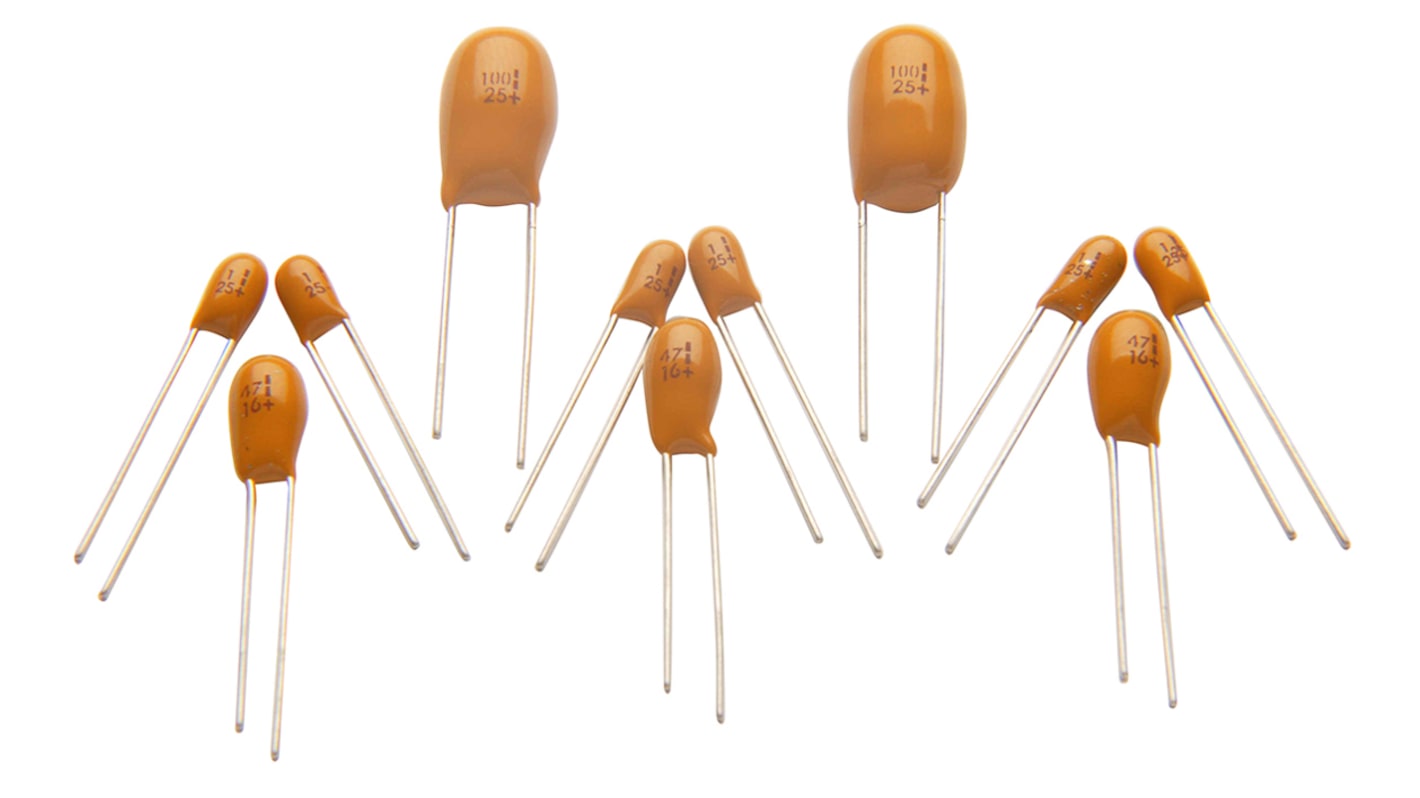

RS PRO Tantalum Capacitor
The RS PRO CB series 47μf epoxy-coated solid electrolytic tantalum capacitor has 16VDC voltage rating with a leakage current of 500nA. It has dimensions of 6.5mm x 6.5mm x 11mm x 0.5mm (L x D x H x lead diameter).
Features and Benefits
• Tolerance: ±20%
• Operating temperature ranges between -55°C and 125°C
• Life test: 1000 hours
• Lead pitch: 2.5mm
• Dissipation factor: Less than 0.08%
• Through hole mount
• Package/Case: D
• Positive polarised
• Operating temperature ranges between -55°C and 125°C
• Life test: 1000 hours
• Lead pitch: 2.5mm
• Dissipation factor: Less than 0.08%
• Through hole mount
• Package/Case: D
• Positive polarised
Applications
• Electronics industry
Certifications
• ANSI/ESD S20.20: 2014
• BS EN 61340-5-1: 2007
• BS EN 61340-5-1: 2007
Specificaties
Kenmerk | Waarde |
|---|---|
| Technology | Electrolytic |
| Capacitance | 47µF |
| Voltage | 16V dc |
| Mounting Type | Through Hole |
| Package/Case | D |
| Lead Pitch | 2.5mm |
| Tolerance | ±20% |
| Length | 6.5mm |
| Depth | 6.5mm |
| Height | 11mm |
| Dimensions | 6.5 x 6.5 x 11mm |
| Electrolyte Type | Solid |
| Maximum Operating Temperature | +125°C |
| Tolerance Plus | +20% |
| Dissipation Factor | <lteq/>0.08% |
| Minimum Operating Temperature | -55°C |
| Dielectric Material Family | Tantalum |
| Polarised | Positive |
| Tolerance Minus | -20% |
| Leakage Current | 500 nA |
| Lead Diameter | 0.5mm |
