- RS-stocknr.:
- 178-7201
- Fabrikant:
- RS PRO
Tijdelijk niet op voorraad – nieuwe voorraad verwacht op 25/06/2024, met een levertijd van 1 werkdag.
Toegevoegd
Prijs Per stuk (in een zak van 100)
€ 0,185
(excl. BTW)
€ 0,224
(incl. BTW)
Aantal stuks | Per stuk | Per Zak* |
100 - 900 | € 0,185 | € 18,50 |
1000 - 1900 | € 0,168 | € 16,80 |
2000 - 4900 | € 0,154 | € 15,40 |
5000 - 9900 | € 0,142 | € 14,20 |
10000 + | € 0,128 | € 12,80 |
*prijsindicatie |
- RS-stocknr.:
- 178-7201
- Fabrikant:
- RS PRO
Datasheets
Wetgeving en conformiteit
- Land van herkomst:
- TW
Productomschrijving

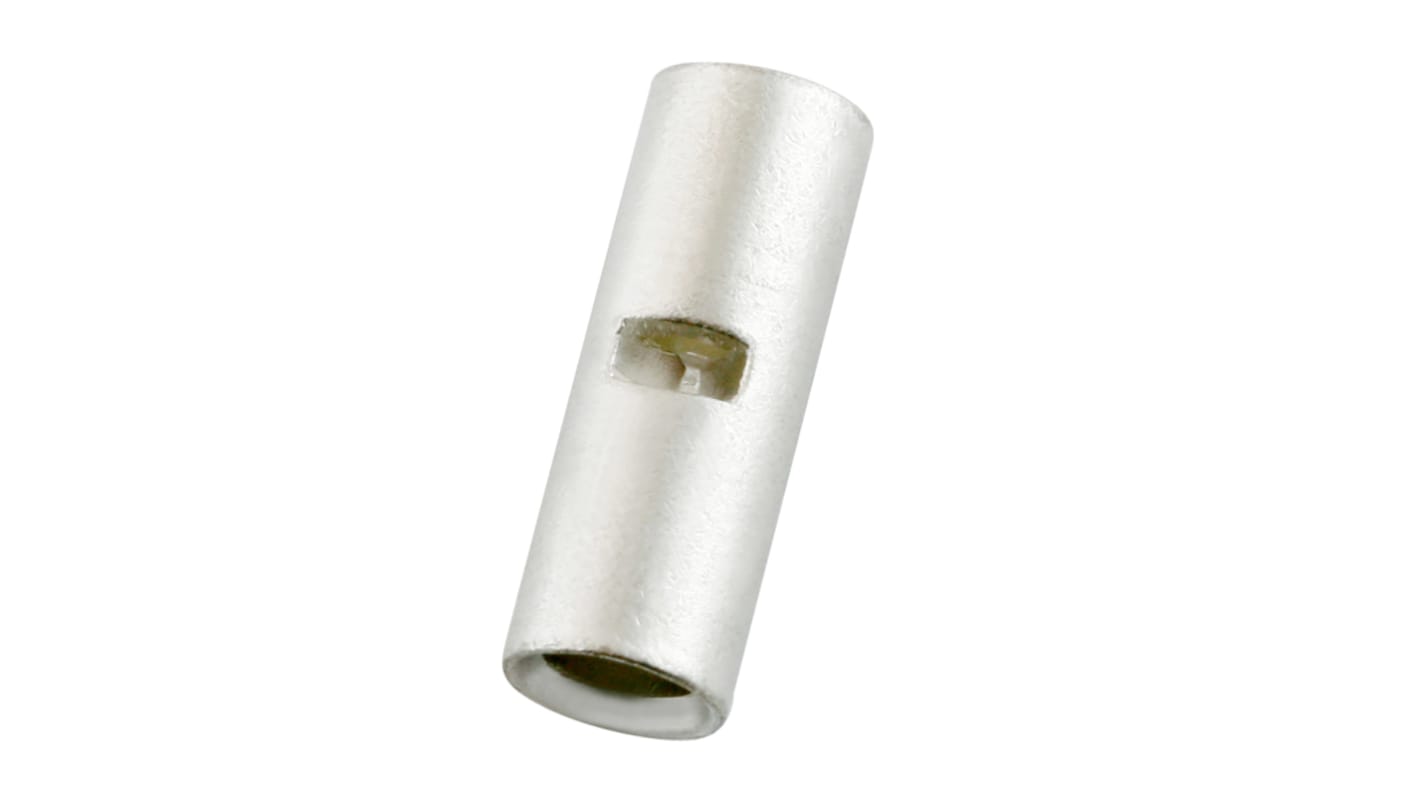

The RS PRO Splice connector is an uninsulated connector with length of 21mm and has wire size of 10AWG.
Contact Material: Copper
Specificaties
Kenmerk | Waarde |
---|---|
Wire Size | 12 → 10 AWG, 4 → 6 mm² |
Minimum Wire Size mm² | 4mm² |
Overall Length | 21mm |
Maximum Wire Size mm² | 6mm² |
Minimum Wire Size AWG | 12AWG |
Diameter | 5.4mm |
Maximum Wire Size AWG | 10AWG |
Insulation | Uninsulated |
Contact Material | Copper |
Thickness | 1mm |
