RS PRO Butt Splice Splice Connector, Silver, Tin 0.5 → 1.5 mm², 22 → 16 AWG
- RS-stocknr.:
- 178-7198
- Fabrikant:
- RS PRO
800 op voorraad - levertijd is 1 werkdag(en) (EU-voorraad)
39900 op voorraad - levertijd is 3 à 5 werkdagen (UK-voorraad)
Toegevoegd
Prijs Per stuk (in een zak van 100)
€ 0,062
(excl. BTW)
€ 0,075
(incl. BTW)
| Aantal stuks | Per stuk | Per Zak* |
| 100 - 900 | € 0,062 | € 6,20 |
| 1000 - 1900 | € 0,057 | € 5,70 |
| 2000 - 4900 | € 0,052 | € 5,20 |
| 5000 - 9900 | € 0,048 | € 4,80 |
| 10000 + | € 0,044 | € 4,40 |
| *prijsindicatie | ||
- RS-stocknr.:
- 178-7198
- Fabrikant:
- RS PRO
Datasheets
Wetgeving en conformiteit
- Land van herkomst:
- TW
Productomschrijving

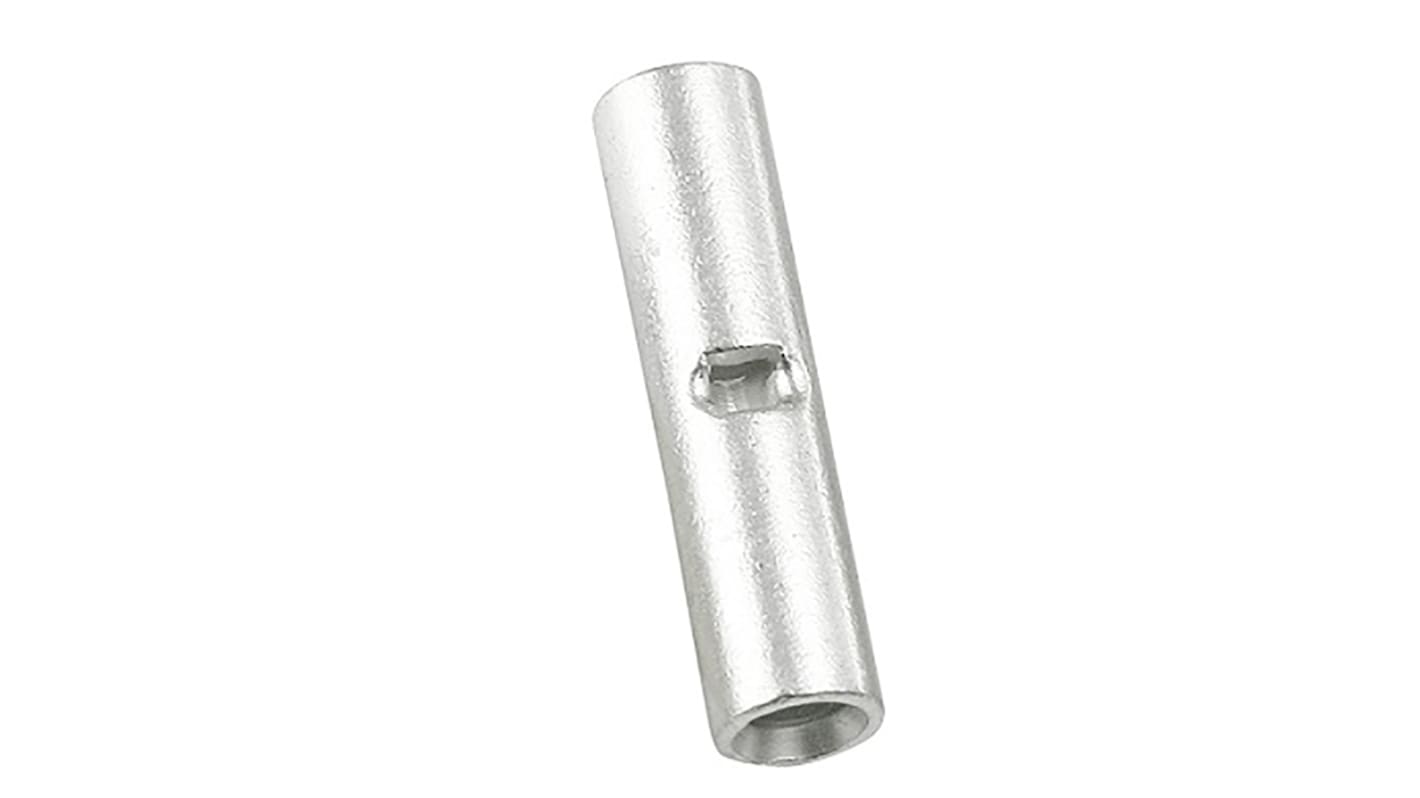

RS PRO Splice Connector 0.5 → 1.5 mm², 22 → 16 AWG
Need a quick and easy way to mate, repair or lengthen wires then choose this butt splice connector from RS PRO. Simply insert the wires into the holes on the sides of the splice and squeeze down on each side of the indentation using a crimper. This achieves a safe and reliable cable connection with no need for soldering.
This splice connector is also used to terminate single wires efficiently. Using an adhesive heat shrink over these units provides insulation, enhances device safety and reduces current leakage. Robust construction ensures the unit doesn't split when crimped and also protects from wire pull-outs.
This unit is stringently tested for durability and quality. Non-insulated butt splice terminals are useful for most general cabling applications, where there is minimal chance of short-circuiting, such as in small electric devices.
This splice connector is also used to terminate single wires efficiently. Using an adhesive heat shrink over these units provides insulation, enhances device safety and reduces current leakage. Robust construction ensures the unit doesn't split when crimped and also protects from wire pull-outs.
This unit is stringently tested for durability and quality. Non-insulated butt splice terminals are useful for most general cabling applications, where there is minimal chance of short-circuiting, such as in small electric devices.
Features and Benefits
- Butt splice type
- Copper contact material
- Diameter of 3.3 mm
- Overall length of 15 mm
- Thickness of 0.7 mm
- Uninsulated
- Wire size range of 16 to 22 AWG (American Wire Gauge) or 0.5 mm² to 1.5 mm²
Small Pack Size
Per Unit, RS stock no: 178-7198
Large Pack Size
RS stock no: 270-7450
Specificaties
Kenmerk | Waarde |
|---|---|
| Splice Type | Butt Splice |
| Wire Size | 0.5 → 1.5 mm², 22 → 16 AWG |
| Minimum Wire Size mm² | 0.5mm² |
| Overall Length | 15mm |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Diameter | 3.3mm |
| Number of Ways | 2 |
| Insulation | Uninsulated |
| Maximum Wire Size AWG | 16AWG |
| Colour | Silver |
| Contact Material | Copper |
| Contact Plating | Tin |
| Thickness | 0.7mm |
