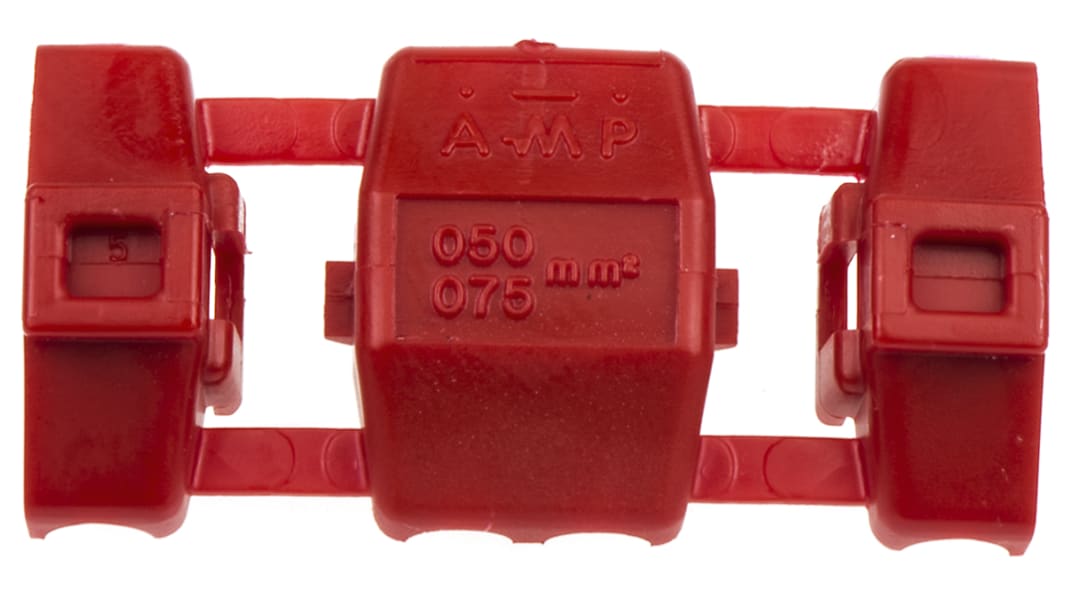

TE Connectivity Tap Wire Splice Connector, Red, Insulated, Tin Plated 20 → 18.5 AWG

Datasheets
Wetgeving en conformiteit
Conform
Productomschrijving

TE Connectivity ELECTRO-TAP Splices

ELECTRO-TAP splices offer an economic method of joining branch or tap wire to solid or stranded for wire ranges 0.5mm - 6.0mm² using insulation displacement self-stripping contacts. These ELECTRO-TAP splice connectors have colour coded nylon housings which double lock when closed. Please see additional data table for insulation diameter and tap wire range.

Can be applied using standard pliers

Specificaties
Kenmerk Waarde
Splice Type Tap
Wire Size 20 → 18.5 AWG
Overall Length 17.5mm
Diameter 12.5mm
Insulation Insulated
Colour Red
Insulation Material Glass Filled Nylon
Contact Material Brass
Contact Plating Tin
Sorry, we konden onze voorraadniveaus nu niet controleren. Probeer de pagina te vernieuwen.
Prijs Each (In a Pack of 10)
0,417
(excl. BTW)
0,505
(incl. BTW)
Aantal stuks
Per stuk
Per pak*
10 - 40
0,417 €
4,17 €
50 - 240
0,394 €
3,94 €
250 - 740
0,353 €
3,53 €
750 - 1490
0,334 €
3,34 €
1500 +
0,311 €
3,11 €
*prijsindicatie
