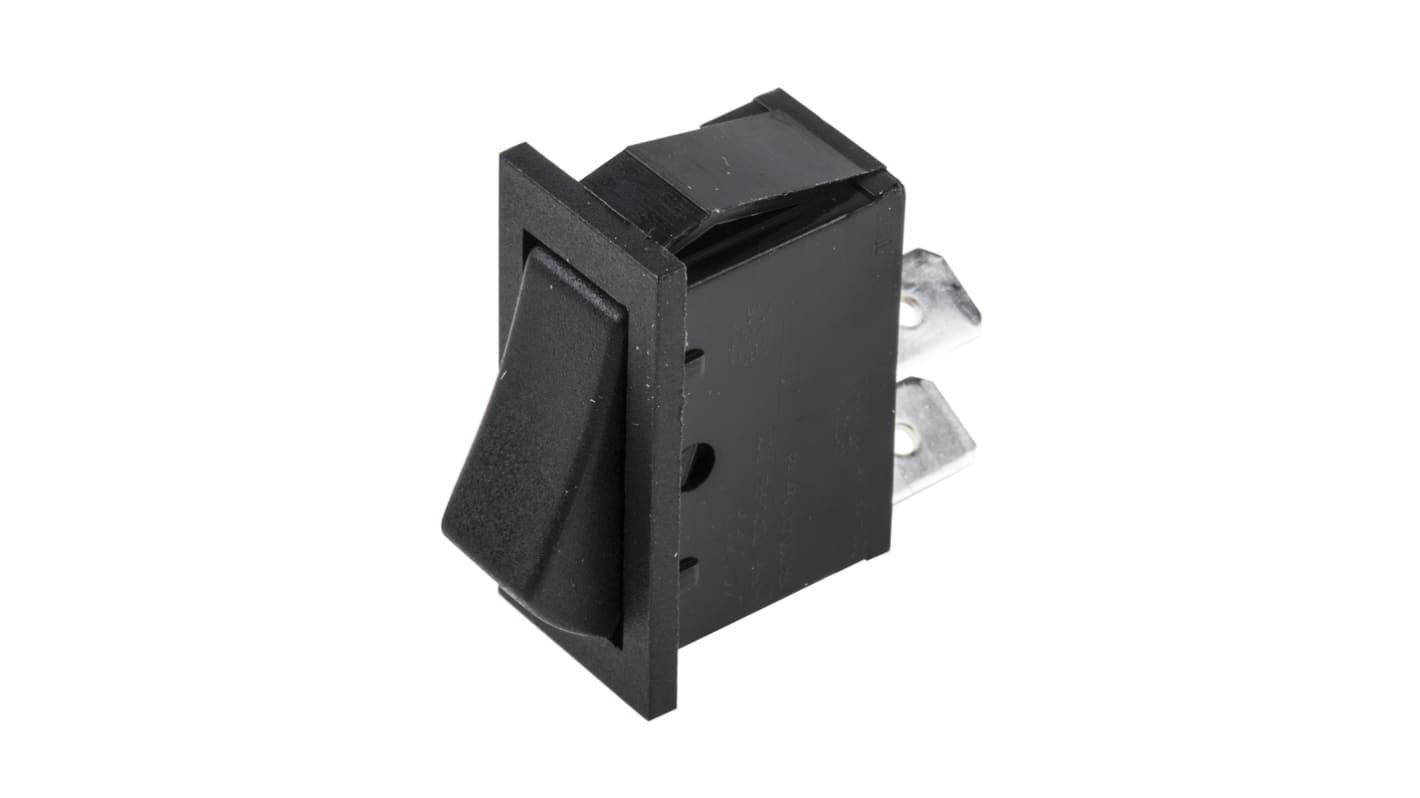

Arcolectric Single Pole Single Throw (SPST), (On)-Off Rocker Switch Panel Mount

  • RS-stocknr. 278-9705
  • Fabrikantnummer C1501AAAAA
  • Fabrikant Arcolectric
Datasheets
Wetgeving en conformiteit
Conform
Land van herkomst: TN
Productomschrijving

Rocker switches (1)

Switches with silver alloy contacts moulded in nylon 6.6.
These switches are available with a black or white body in illuminated or non-illuminated versions.
Faston 6.35 mm terminal connection.
Suitable cutting tools:
- single pole: stock no. 614-334,
- double pole: stock no. 614-328.
Red or green light suitable for 240 Vac.

Approved: UL, CSA, ENEC

Specificaties
Kenmerk Waarde
Contact Configuration Single Pole Single Throw (SPST)
Switch Operation (On)-Off
Panel Cut Out Width 12.2mm
Panel Cut Out Height 27.2mm
Contact Current Rating 16 A
Illuminated No
Mounting Type Panel Mount
Terminal Type Quick Connect
Actuator Shape Rectangular
AC Voltage Rating 125 V, 250 V
Panel Cut Out Size 27.2 x 12.2mm
457 op voorraad - levertijd is 1 werkdag(en).
Prijs Each
4,45
(excl. BTW)
5,38
(incl. BTW)
Aantal stuks
Per stuk
1 - 24
4,45 €
25 - 49
3,91 €
50 - 99
3,78 €
100 - 249
3,47 €
250 +
2,89 €
