Productomschrijving

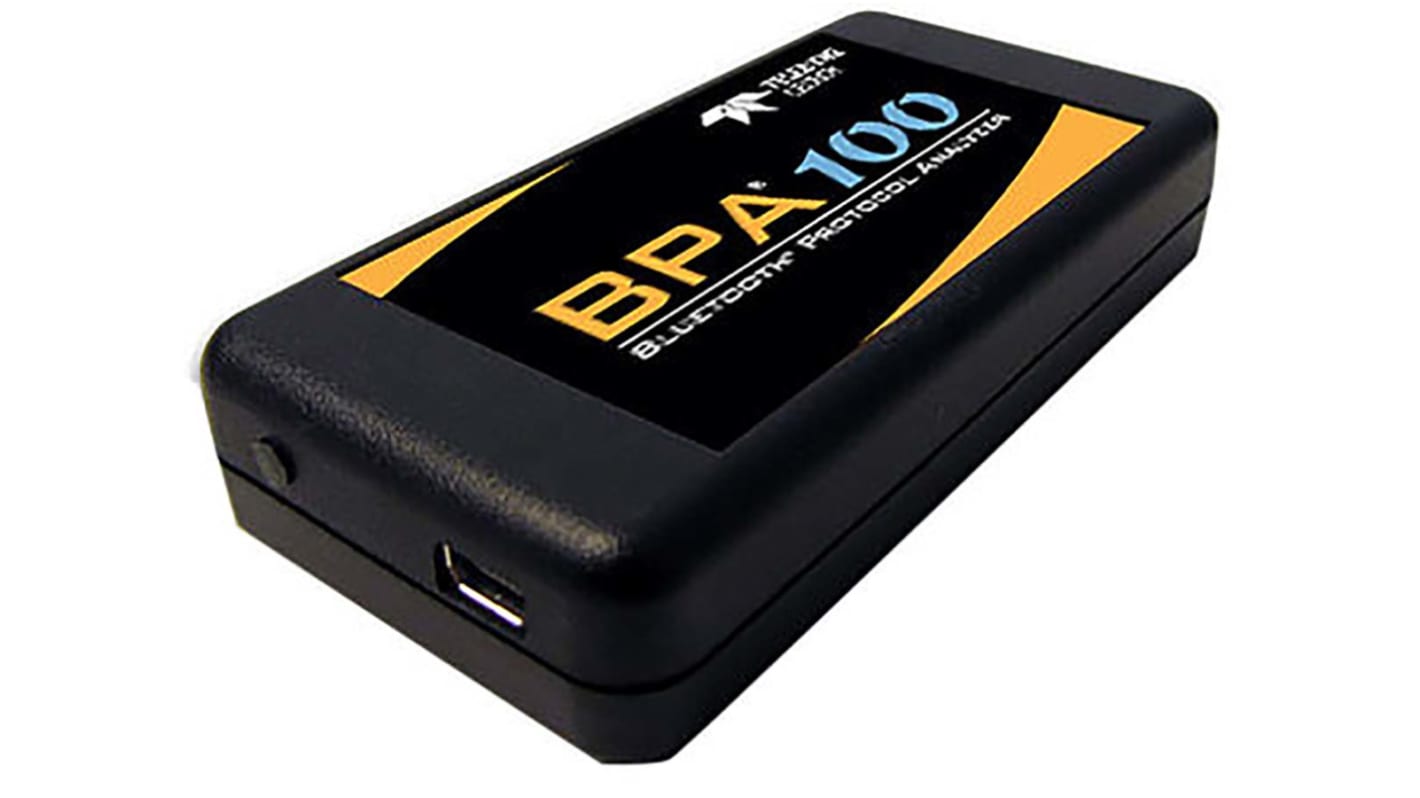

Teledyne LeCroy Bluetooth Protocol Analyser
The Teledyne LeCroy Bluetooth protocol analyser has USB 2.0 Mini-B bus connector. It includes the portable BPA low energy hardware interface which supports the wireless capture of Bluetooth low energy communication. The BPA low energy hardware interface is one member of an extensive arsenal of technology-specific hardware interfaces, all functioning with the powerful Frontline software. This modular approach allows greater flexibility in protocol analysis and debugging and provides comprehensive coexistence views over virtually any combination of protocols. This is a perfect tool for bench or field because of its USB powering facility and portable size.
Features and Benefits
Analyse now feature helps you see events as they occur through live decoding and decryption of encrypted data
Hassle free decoding facilitates simple device setup for developers of Bluetooth Smart and Smart Ready technologies
Excellent value tailored specifically to low energy analysis
ComProbe BPA low energy features maximum value for the money
Bluetooth decoding approach enables reliable development and problem solving
Maximum flexibility is provided as DecoderScript lets you specify decodes for custom protocols
Reaches faster to market as reduced debug time with simultaneous live capture, display, decode, filtering and detection of protocol errors
Hassle free decoding facilitates simple device setup for developers of Bluetooth Smart and Smart Ready technologies
Excellent value tailored specifically to low energy analysis
ComProbe BPA low energy features maximum value for the money
Bluetooth decoding approach enables reliable development and problem solving
Maximum flexibility is provided as DecoderScript lets you specify decodes for custom protocols
Reaches faster to market as reduced debug time with simultaneous live capture, display, decode, filtering and detection of protocol errors
Applications
Wireless communication
Telecommunication
Electronics designing
Telecommunication
Electronics designing
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
BS EN 61340-5-1:2007
Specificaties
Kenmerk | Waarde |
---|---|
Protocols Supported | Bluetooth |
Form Factor | BPA Low Energy |
Connectors | Mini-B USB 2.0 |
Standard Trigger Events | Packet Identifier |
Dimensions | 89 x 44.5 x 18mm |
Height | 18mm |
Length | 89mm |
Maximum Operating Temperature | +55°C |
Minimum Operating Temperature | +5°C |
Model Number p | ComProbe BPA Bluetooth Low Energy |
Width | 44.5mm |
