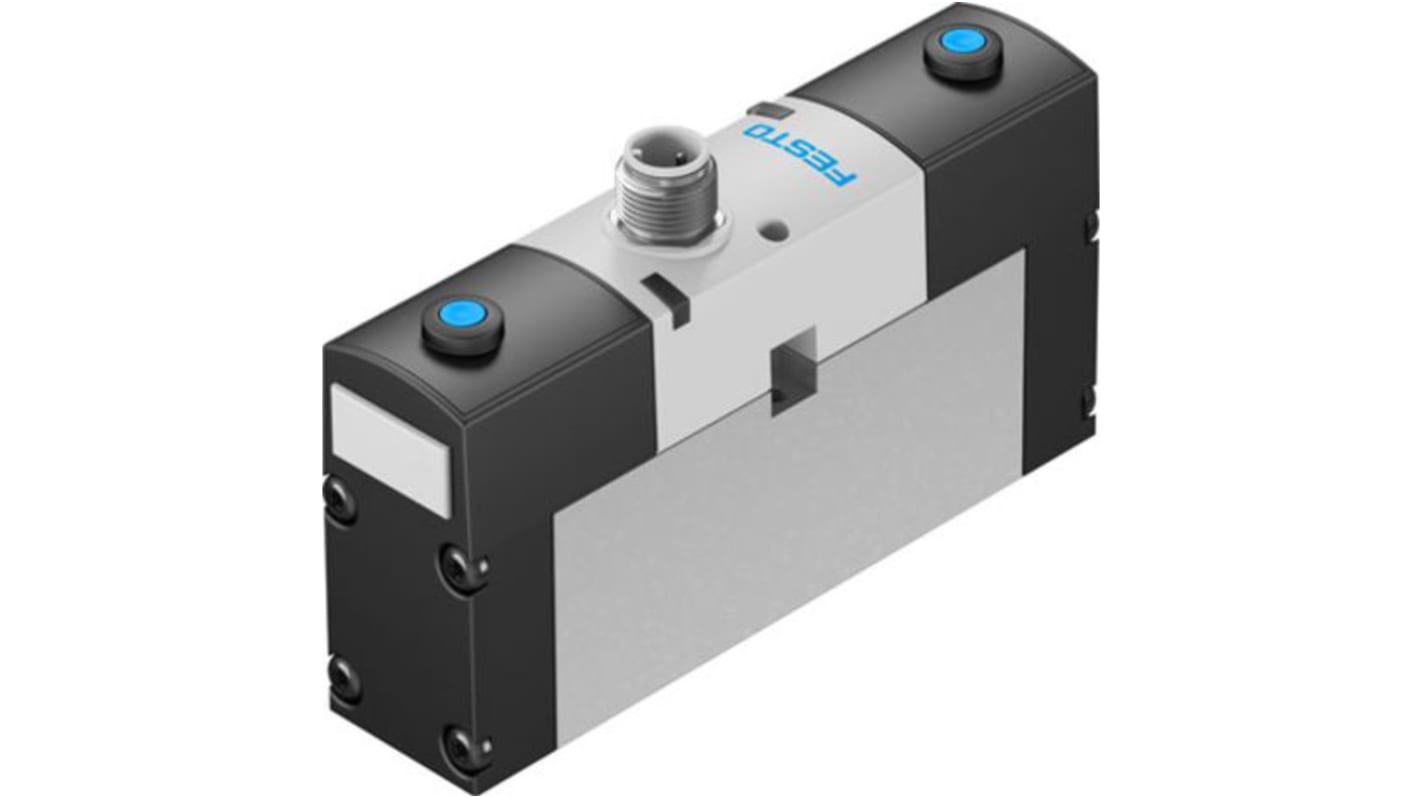

Festo Solenoid Valve - 2 x 3/2 Closed, Monostable Electric M12 x 1 VSVA-B-T32C-AZH-A1-1R5L Series 24V
- RS-stocknr.:
- 203-7485
- Fabrikantnummer:
- VSVA-B-T32C-AZH-A1-1R5L
- Fabrikant:
- Festo
Subtotaal (1 eenheid)*
€ 193,90
(excl. BTW)
€ 234,62
(incl. BTW)
GRATIS bezorging voor bestellingen vanaf € 90,00
- Klaar voor verzending vanaf 16 september 2026
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 193,90 |
*prijsindicatie
- RS-stocknr.:
- 203-7485
- Fabrikantnummer:
- VSVA-B-T32C-AZH-A1-1R5L
- Fabrikant:
- Festo
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Festo | |
| Product Type | Solenoid Valve | |
| Port Type | Push-in | |
| Port Size | 9 mm | |
| Connection Thread Standard | M12 x 1 | |
| Actuation Type | Electric | |
| Seal Material | Halogenated Nitrile Rubber, Nitrile Rubber (NBR), Fluorelastomer | |
| Solenoid Type | VSVA-B-T32C-AZH-A1-1R5L | |
| Voltage | 24V | |
| Series | VSVA-B-T32C-AZH-A1-1R5L | |
| Mount Type | Base, Screw, Through Hole | |
| Number of Ports | 3 | |
| Maximum Operating Pressure | 10 bar | |
| Body Material | Die Cast Aluminium | |
| Valve Function | 2 x 3/2 Closed, Monostable | |
| Maximum Flow Rate | 1250L/min | |
| Minimum Operating Temperature | -5°C | |
| Port Gender | Male | |
| Minimum Pilot Pressure | 3bar | |
| Maximum Pilot Pressure | 8bar | |
| Maximum Operating Temperature | 50°C | |
| Solenoid Power Consumption | 2.4W | |
| Standards/Approvals | ISO 15407-1, ISO8573-1:2010 (7:4:4), RoHS | |
| Hazardous Area Certification | C-Tick, cULus, cCSAus | |
| Width | 26mm | |
| Height | 58.3mm | |
| Length | 140mm | |
| Number of Positions | 2 | |
| Electrical Connection Type | Central Plug | |
| Model Number | 534542 | |
| Alles selecteren | ||
|---|---|---|
Merk Festo | ||
Product Type Solenoid Valve | ||
Port Type Push-in | ||
Port Size 9 mm | ||
Connection Thread Standard M12 x 1 | ||
Actuation Type Electric | ||
Seal Material Halogenated Nitrile Rubber, Nitrile Rubber (NBR), Fluorelastomer | ||
Solenoid Type VSVA-B-T32C-AZH-A1-1R5L | ||
Voltage 24V | ||
Series VSVA-B-T32C-AZH-A1-1R5L | ||
Mount Type Base, Screw, Through Hole | ||
Number of Ports 3 | ||
Maximum Operating Pressure 10 bar | ||
Body Material Die Cast Aluminium | ||
Valve Function 2 x 3/2 Closed, Monostable | ||
Maximum Flow Rate 1250L/min | ||
Minimum Operating Temperature -5°C | ||
Port Gender Male | ||
Minimum Pilot Pressure 3bar | ||
Maximum Pilot Pressure 8bar | ||
Maximum Operating Temperature 50°C | ||
Solenoid Power Consumption 2.4W | ||
Standards/Approvals ISO 15407-1, ISO8573-1:2010 (7:4:4), RoHS | ||
Hazardous Area Certification C-Tick, cULus, cCSAus | ||
Width 26mm | ||
Height 58.3mm | ||
Length 140mm | ||
Number of Positions 2 | ||
Electrical Connection Type Central Plug | ||
Model Number 534542 | ||
- Land van herkomst:
- DE
