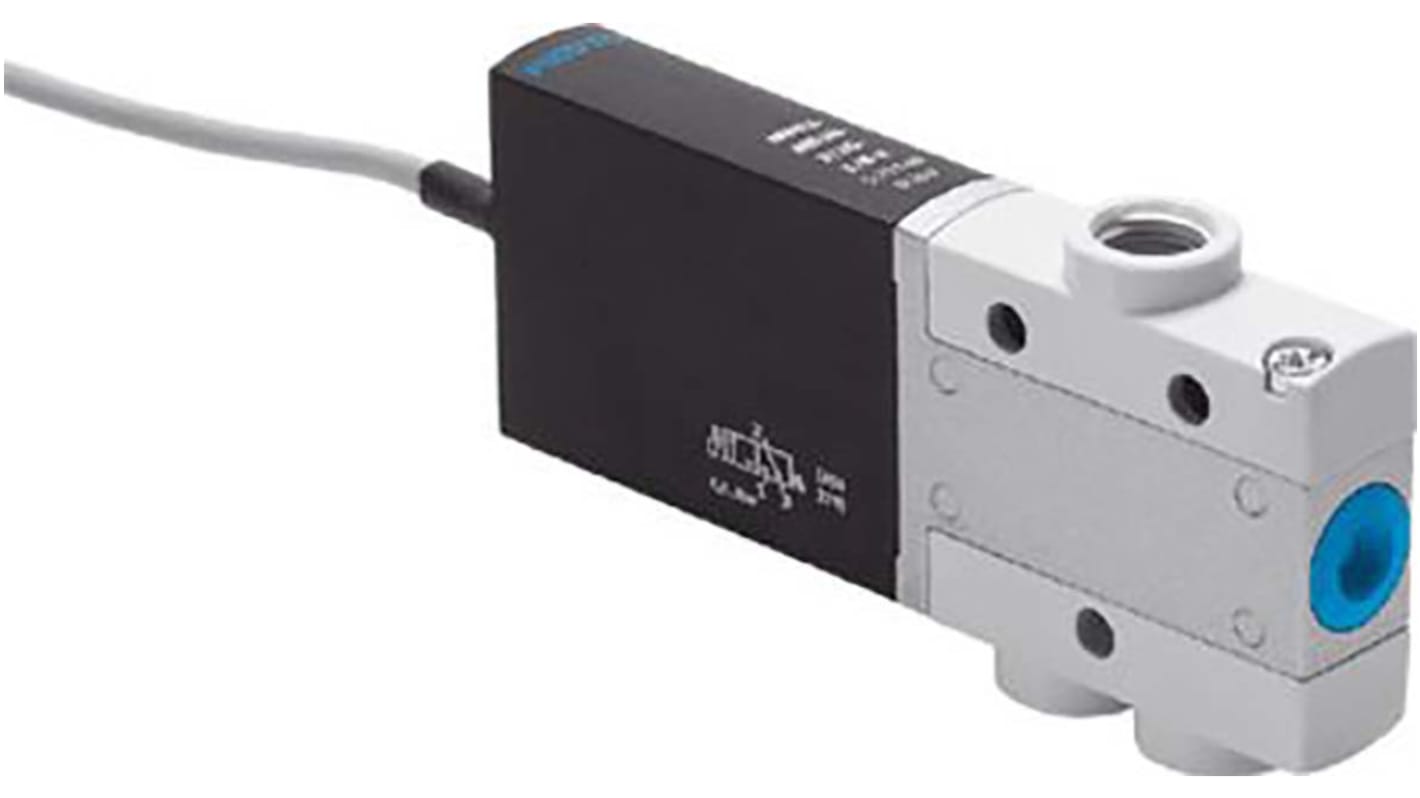

Festo Pneumatic Solenoid/Pilot-Operated Control Valve - 3/2 Closed Monostable Electric G MHE3-MS1H-3/2G-1/8-K Series

RS-stocknr.:: 203-7198
Fabrikantnummer:: MHE3-MS1H-3/2G-1/8-K
Fabrikant:: Festo

Festo Pneumatic Solenoid/Pilot-Operated Control Valve - 3/2 Closed Monostable Electric G MHE3-MS1H-3/2G-1/8-K Series

Subtotaal (1 eenheid)*

€ 111,71

(excl. BTW)

€ 135,17

(incl. BTW)

GRATIS bezorging voor bestellingen vanaf € 90,00

Op voorraad

8 stuk(s) klaar voor verzending
Plus verzending 5 stuk(s) vanaf 02 juli 2026

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 +	€ 111,71

*prijsindicatie

RS-stocknr.:: 203-7198
Fabrikantnummer:: MHE3-MS1H-3/2G-1/8-K
Fabrikant:: Festo

Specificaties

Datasheets

Wetgeving en conformiteit

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Festo
	Product Type	Pneumatic Solenoid/Pilot-Operated Control Valve
	Port Size	1/8 in
	Port Type	Pneumatic
	Connection Thread Standard	G
	Actuation Type	Electric
	Voltage	24V
	Series	MHE3-MS1H-3/2G-1/8-K
	Seal Material	Nitrile Rubber (NBR)
	Solenoid Type	Single
	Mount Type	Through Hole
	Number of Ports	3
	Body Material	Die Cast Zinc
	Maximum Operating Pressure	8 bar
	Minimum Operating Temperature	-5°C
	Minimum Pilot Pressure	2bar
	Maximum Flow Rate	200L/min
	Maximum Pilot Pressure	10bar
	Port Gender	Female
	Valve Function	3/2 Closed Monostable
	Maximum Operating Temperature	60°C
	Solenoid Power Consumption	6.5W
	Hazardous Area Certification	NO
	Width	14mm
	Standards/Approvals	RCM c UL us (OL) KC KC-EMV CE to EU for EMC
	Number of Positions	2
	Electrical Connection Type	Cable

	Alles selecteren
	Merk Festo
	Product Type Pneumatic Solenoid/Pilot-Operated Control Valve
	Port Size 1/8 in
	Port Type Pneumatic
	Connection Thread Standard G
	Actuation Type Electric
	Voltage 24V
	Series MHE3-MS1H-3/2G-1/8-K
	Seal Material Nitrile Rubber (NBR)
	Solenoid Type Single
	Mount Type Through Hole
	Number of Ports 3
	Body Material Die Cast Zinc
	Maximum Operating Pressure 8 bar
	Minimum Operating Temperature -5°C
	Minimum Pilot Pressure 2bar
	Maximum Flow Rate 200L/min
	Maximum Pilot Pressure 10bar
	Port Gender Female
	Valve Function 3/2 Closed Monostable
	Maximum Operating Temperature 60°C
	Solenoid Power Consumption 6.5W
	Hazardous Area Certification NO
	Width 14mm
	Standards/Approvals RCM c UL us (OL) KC KC-EMV CE to EU for EMC
	Number of Positions 2
	Electrical Connection Type Cable

Land van herkomst:: HU

Festo Closed Monostable Pneumatic Solenoid/Pilot-Operated Control Valve, 3/2 - MHE3-MS1H-3/2G-1/8-K

When you need a responsive control valve for use in your pneumatic system, opt for this durable 3/2 monostable valve from Festo. You can operate it either with a solenoid or an air pilot using electrical actuation. This allows it to work at high speed and offers the ability to control it remotely. The valve is fitted with a protective circuit to reduce the risk of damage, while a manual override function offers greater control if needed. Thanks to simple through-hole mounting, it helps you build a neat and compact system.

• Die-cast zinc housing combines strength with light weight

• IP65 (ingress protection) rated so it's dust-proof and will stand up to jets of water

• Nitrile rubber seals guard against leakage

Applications

• Driving pneumatic actuators

• Pressure release

• Vacuum systems

What's a 3/2 valve?

A 3/2 valve has three ports and two positions. 3/2 valves can be driven pneumatically, mechanically or with an electrically actuated solenoid valve.

What's a monostable valve?

A monostable valve uses a spring to return to its home position when not actuated. 3/2 monostable valves are available in normally open (NO) or normally closed (NC) configurations.
