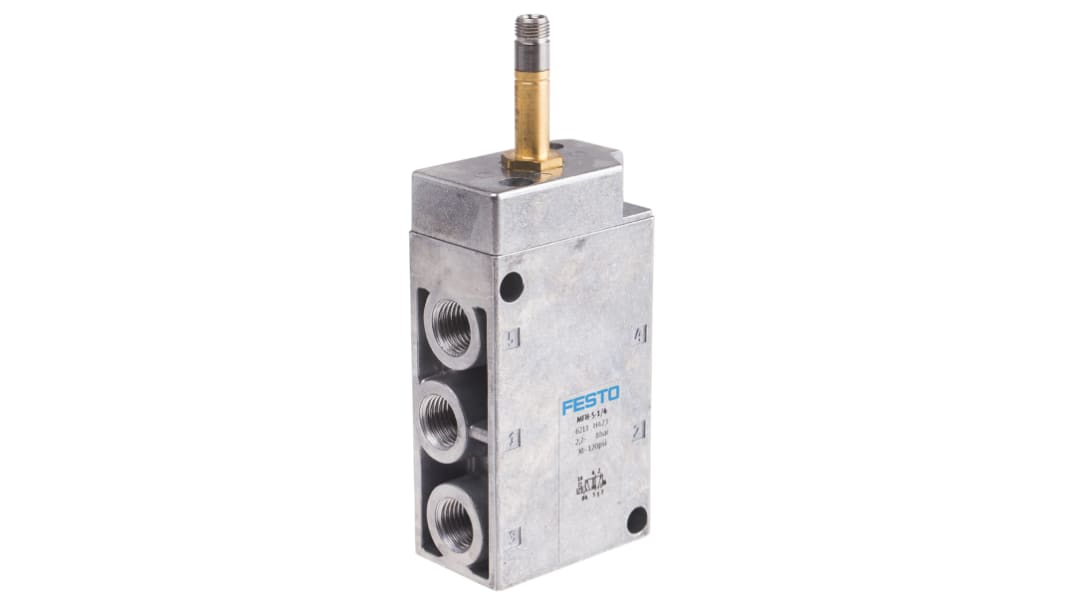

Festo 5/2 Pneumatic Solenoid Valve - Solenoid/Pilot G 1/4 MFH Series 12 → 48V dc, 24 → 240V ac, 6211
- RS-stocknr.:
- 121-4315
- Fabrikantnummer:
- MFH-5-1/4
- Fabrikant:
- Festo
Bulkkorting beschikbaar
Subtotaal (1 eenheid)*
€ 164,72
(excl. BTW)
€ 199,31
(incl. BTW)
GRATIS bezorging voor bestellingen vanaf € 75,00
Op voorraad
- Plus verzending 24 stuk(s) vanaf 10 november 2025
- Plus verzending 45 stuk(s) vanaf 10 november 2025
- Plus verzending 25 stuk(s) vanaf 14 november 2025
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 - 4 | € 164,72 |
| 5 + | € 158,13 |
*prijsindicatie
- RS-stocknr.:
- 121-4315
- Fabrikantnummer:
- MFH-5-1/4
- Fabrikant:
- Festo
Specificaties
Datasheets
Wetgeving en conformiteit
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Festo | |
| Function | 5/2 | |
| Connection Port Thread | G 1/4 | |
| Actuation Type | Solenoid/Pilot | |
| Manufacturer Series | MFH | |
| Mounting Style | Manifold, Threaded | |
| Solenoid Voltage | 12 → 48V dc, 24 → 240V ac | |
| Solenoid Fitted | No | |
| Number of Ports | 5 | |
| Body Material | Aluminium | |
| Maximum Flow Rate | 1000L/min | |
| Solenoid Power Consumption | 4.5W | |
| Minimum Operating Pressure | 2.2bar | |
| Hazardous Area Certification | ATEX | |
| Maximum Operating Pressure | 8 bar | |
| Minimum Operating Temperature | -5°C | |
| Thread Size | 1/4in | |
| Number of Positions | 2 | |
| Maximum Operating Temperature | +40°C | |
| Thread Standard | G | |
| Alles selecteren | ||
|---|---|---|
Merk Festo | ||
Function 5/2 | ||
Connection Port Thread G 1/4 | ||
Actuation Type Solenoid/Pilot | ||
Manufacturer Series MFH | ||
Mounting Style Manifold, Threaded | ||
Solenoid Voltage 12 → 48V dc, 24 → 240V ac | ||
Solenoid Fitted No | ||
Number of Ports 5 | ||
Body Material Aluminium | ||
Maximum Flow Rate 1000L/min | ||
Solenoid Power Consumption 4.5W | ||
Minimum Operating Pressure 2.2bar | ||
Hazardous Area Certification ATEX | ||
Maximum Operating Pressure 8 bar | ||
Minimum Operating Temperature -5°C | ||
Thread Size 1/4in | ||
Number of Positions 2 | ||
Maximum Operating Temperature +40°C | ||
Thread Standard G | ||
- Land van herkomst:
- IN
Festo 5/2 Pneumatic Solenoid Valve, 48V DC, 240V AC - MFH-5-1/4, 6211
Looking for a sturdy control device to direct compressed airflow in pneumatic systems? Opt for this solenoid valve from Festo. With die-cast aluminium body material, the unit has excellent durability and can withstand corrosion, so it's suitable for harsh environments. The valve opens and closes when air pressure is applied to its piston. It has a mechanical spring that allows you to easily return it to its original position after actuation. Solenoid valves like this one are used to operate repeated functions in manufacturing facilities.
• Maximum operating pressure of 8 bar for high-performance operations
• Threaded mounting style is easy and saves time and effort
• Solenoid power consumption of 4.5W for optimal energy efficiency
• Can be mounted on either the DIN rail or manifold for flexibility
• Throttleable exhaust air function to discharge excess gas and improve performance
• Festo part number 6211
• Threaded mounting style is easy and saves time and effort
• Solenoid power consumption of 4.5W for optimal energy efficiency
• Can be mounted on either the DIN rail or manifold for flexibility
• Throttleable exhaust air function to discharge excess gas and improve performance
• Festo part number 6211
• Solenoid Voltage 12,24,42,48V dc;
24,42,48,110,230,240V ac
24,42,48,110,230,240V ac
Applications
• Oil rigs
• Chemical production facilities
• Pharmaceutical manufacturing plants
• Automation and robotics
• Chemical production facilities
• Pharmaceutical manufacturing plants
• Automation and robotics
Can I use this component in hazardous areas?
Yes, you can. This product is made with durable materials and has been rated to withstand potentially explosive and hazardous environments.
