- RS-stocknr.:
- 175-2129
- Fabrikantnummer:
- SFAM-62-3000L-M-2SA-M12
- Fabrikant:
- Festo
Tijdelijk niet op voorraad – nieuwe voorraad verwacht op 08/05/2024, met een levertijd van 1 werkdag.
Toegevoegd
Prijs Per stuk
€ 935,84
(excl. BTW)
€ 1.132,37
(incl. BTW)
Aantal stuks | Per stuk |
1 + | € 935,84 |
Alternatief
Dit product is momenteel niet beschikbaar. Hierbij onze aanbeveling voor een alternatief product.
- RS-stocknr.:
- 175-2129
- Fabrikantnummer:
- SFAM-62-3000L-M-2SA-M12
- Fabrikant:
- Festo
Wetgeving en conformiteit
N.v.t.
- Land van herkomst:
- BG
Productomschrijving

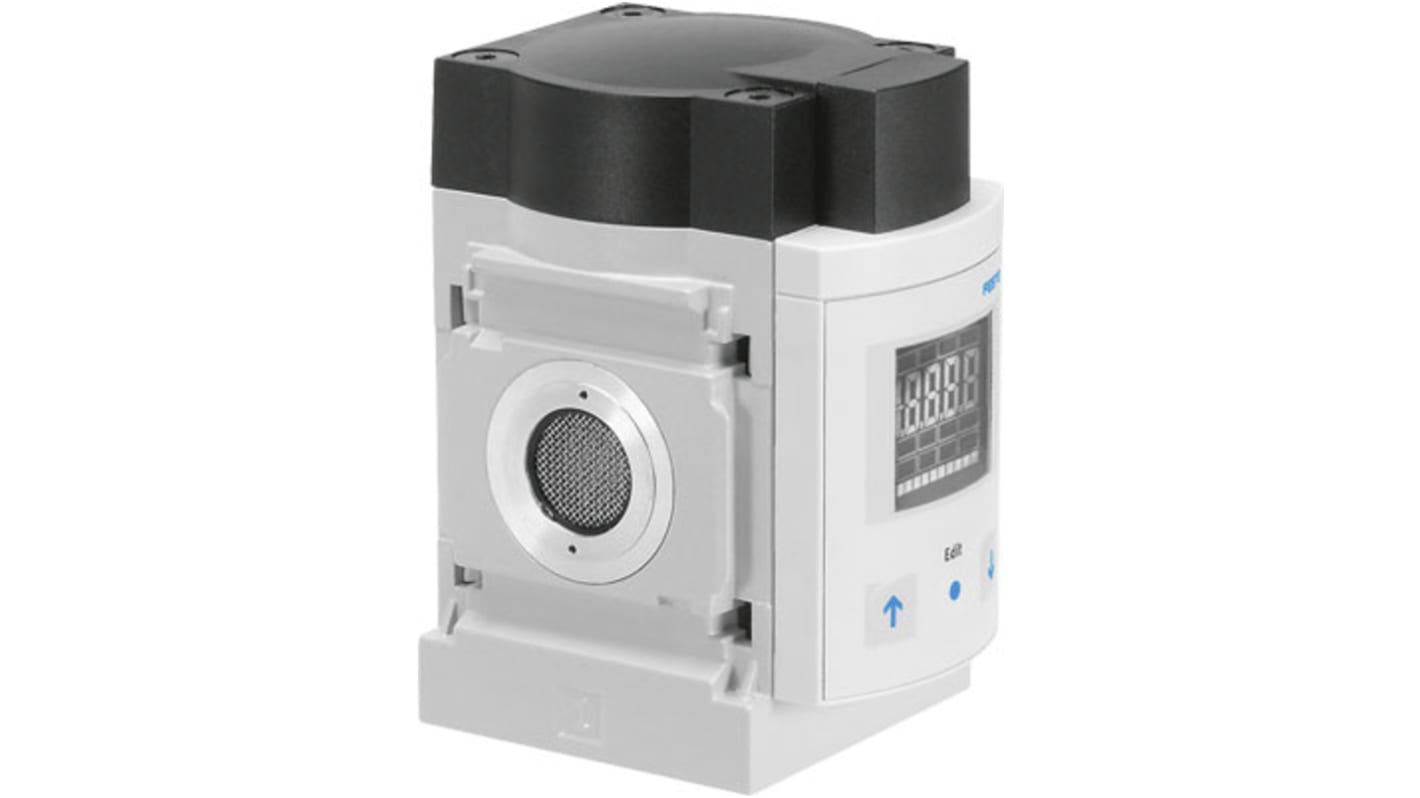

Festo Flow Controller, 0 to 10V - SFAM Series - SFAM-62-3000L-M-2SA-M12
Looking for a simple and reliable monitoring solution for your industrial pneumatic systems? Turn to Festo's flow controller to detect changes in air consumption and flow to a high degree of accuracy. A large illuminated blue LCD display provides flow information, threshold values and convenient switching point adjustments so you can detect leaks and monitor energy costs. The flow controller has a five-pin M12 straight plug electric connection and can be operated on its own or in combination with service units.
Features and Benefits
IP65 rating to protect against dust and low-pressure water jets
Supply voltage of 0 V to 10 V
Weight of 600 g
Maximum flow measurement of 3000 L/min
Minimum operating pressure of 0 bar
Maximum operating pressure of 16 bar
Minimum operating temperature of 0°C
Maximum operating temperature of +50°C
Supply voltage of 0 V to 10 V
Weight of 600 g
Maximum flow measurement of 3000 L/min
Minimum operating pressure of 0 bar
Maximum operating pressure of 16 bar
Minimum operating temperature of 0°C
Maximum operating temperature of +50°C
Range Information
The SFAM series is Festo's range of compact flow sensors designed for handling high flow rates
The sensors can be used as standalone units or in combination with the Festo MS series of filter regulator units
The SFAM series is capable of a high dynamic response of 1:100 and covers an extensive measuring range with accuracy
The sensors can display values for different international standard conditions
The sensors can be used as standalone units or in combination with the Festo MS series of filter regulator units
The SFAM series is capable of a high dynamic response of 1:100 and covers an extensive measuring range with accuracy
The sensors can display values for different international standard conditions
Certifications
ATEX certified
IP65 rated
RCM mark
UL E322346 certified
IP65 rated
RCM mark
UL E322346 certified
Specificaties
Kenmerk | Waarde |
---|---|
Supply Voltage | 0 → 10V |
Manufacturer Series | SFAM |
LED Indicator | Yes |
Compatible With | MS6 Series, MS9 Series |
IP Rating | IP65 |
Minimum Operating Pressure | 0bar |
Minimum Operating Temperature | 0°C |
Maximum Operating Temperature | +50°C |
Maximum Operating Pressure | 16 bar |
Hazardous Area Certification | ATEX |
Model Number p | 564934 |
