- RS-stocknr.:
- 163-0177
- Fabrikantnummer:
- NCS2005SN1T1G
- Fabrikant:
- onsemi
tijdelijk niet op voorraad – nieuwe voorraad verwacht op 07/06/2024, met een levertijd van 2 à 3 werkdagen.
Toegevoegd
Prijs Per stuk (op een rol 3000)
€ 0,349
(excl. BTW)
€ 0,422
(incl. BTW)
Aantal stuks | Per stuk | Per reel* |
3000 + | € 0,349 | € 1.047,00 |
*prijsindicatie |
- RS-stocknr.:
- 163-0177
- Fabrikantnummer:
- NCS2005SN1T1G
- Fabrikant:
- onsemi
Wetgeving en conformiteit
- Land van herkomst:
- MY
Productomschrijving

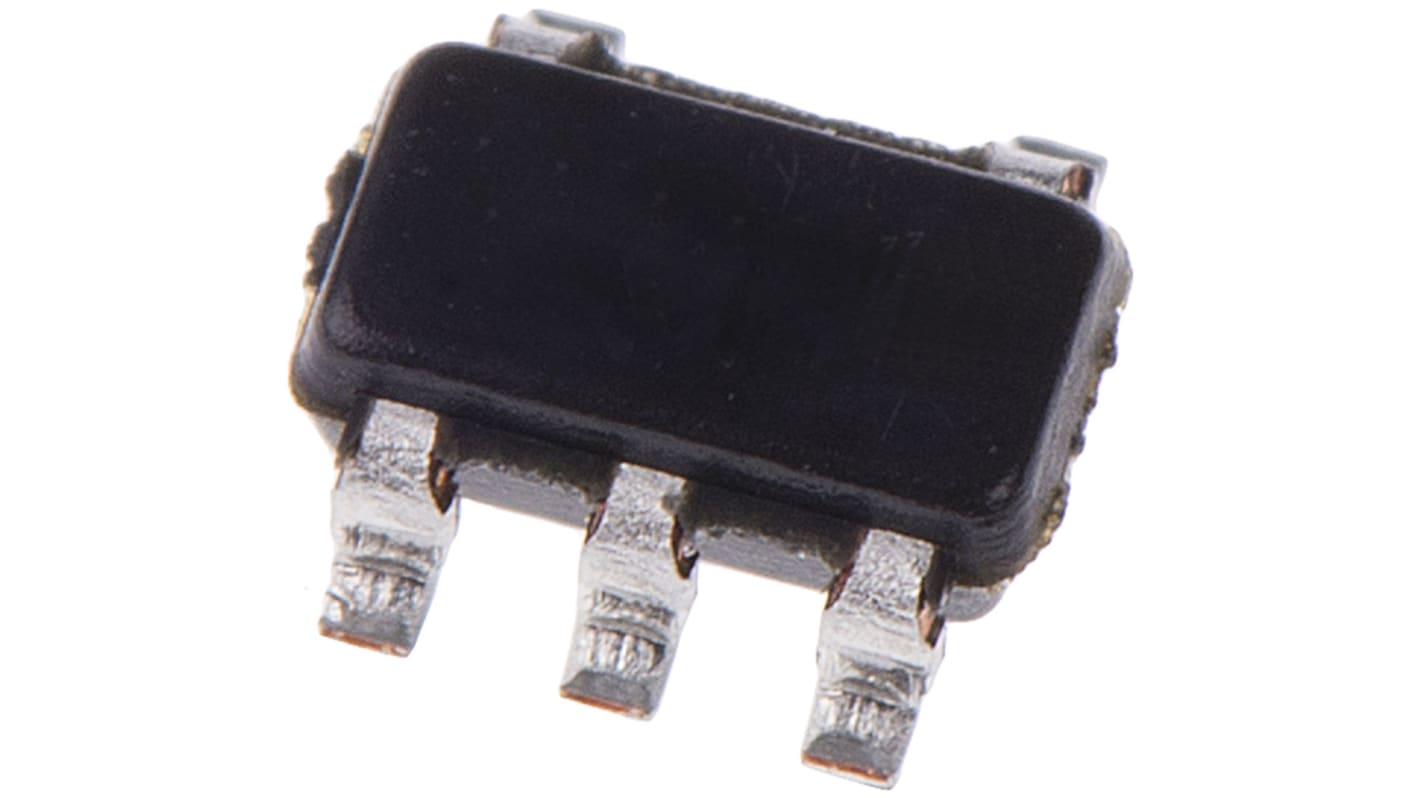

NCS2005, Low Power, 8MHz, Rail-to-Rail I/O Operational Amplifier, ON Semiconductor
The ON Semiconductor NCS2005 Operational Amp offers beyond rail−to−rail input range, full rail−to−rail output swing, large capacitive load driving ability, and low distortion.
Drive inputs by voltages that exceed both power supply rails and the rail−to−rail output swing capability provides the maximum dynamic range at the output.
Drive inputs by voltages that exceed both power supply rails and the rail−to−rail output swing capability provides the maximum dynamic range at the output.
Features
- Wide power supply range: 2.2 V to 32 V
- Common mode voltage range wider than Rail−to−Rail: VCM = −0.1 V to 5.1 V @ VS = 5 V
- Wide gain bandwidth: 8 MHz typical
- Low supply current: 1.3 mA typical
Typical Applications
- Active Filters
- Voltage Referenced Buffers
- Sensors and Instrumentation
- Microphone Amplifiers
- ASIC Input Drivers
- Portable Communications
- Wide power supply range: 2.2 V to 32 V
- Common mode voltage range wider than Rail−to−Rail: VCM = −0.1 V to 5.1 V @ VS = 5 V
- Wide gain bandwidth: 8 MHz typical
- Low supply current: 1.3 mA typical
Typical Applications
- Active Filters
- Voltage Referenced Buffers
- Sensors and Instrumentation
- Microphone Amplifiers
- ASIC Input Drivers
- Portable Communications
Operational Amplifiers, ON Semiconductor
Specificaties
Kenmerk | Waarde |
---|---|
Mounting Type | Surface Mount |
Package Type | SOT-23 |
Power Supply Type | Single |
Number of Channels per Chip | 1 |
Pin Count | 5 |
Typical Gain Bandwidth Product | 8.5MHz |
Typical Slew Rate | 2.8V/µs |
Maximum Operating Frequency | 1 kHz |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +125 °C |
Typical Voltage Gain | 100 dB |
Maximum Input Voltage | 32 V |
Output Current | 20 mA |
Rail to Rail | Rail to Rail Input/Output |
Offset Voltage | 6mV |
Length | 3mm |
Input Voltage Range | 2.2 → 32 V |
Width | 1.5mm |
Height | 1mm |
Minimum Input Voltage | 2.2 V |
Typical Input Voltage Noise Density | 45nV/√Hz |
Input Offset Current | 80nA |
Dimensions | 3 x 1.5 x 1mm |
