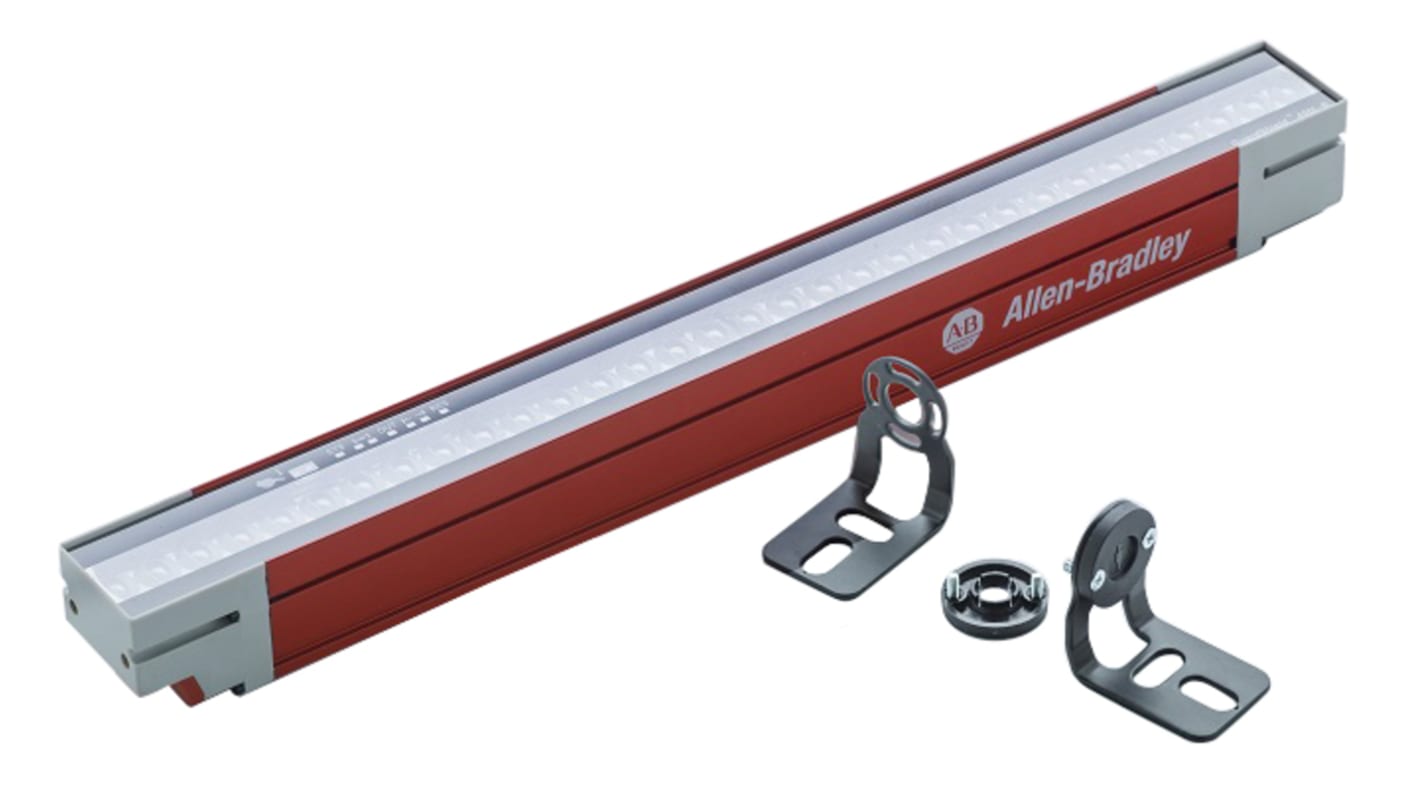

Allen Bradley Guardmaster 450L Series GuardShield Light Curtain Transceiver, 16 Beam(s), 14mm Resolution
- RS-stocknr.:
- 151-2494
- Fabrikantnummer:
- 450L-B4FN1800YD
- Fabrikant:
- Allen Bradley Guardmaster
tijdelijk niet op voorraad – nieuwe voorraad verwacht op 29/05/2024, met een levertijd van 2 à 3 werkdagen.
Toegevoegd
Prijs Per stuk
€ 2.364,87
(excl. BTW)
€ 2.861,49
(incl. BTW)
| Aantal stuks | Per stuk |
| 1 + | € 2.364,87 |
- RS-stocknr.:
- 151-2494
- Fabrikantnummer:
- 450L-B4FN1800YD
- Fabrikant:
- Allen Bradley Guardmaster
Datasheets
Wetgeving en conformiteit
Vrijgesteld
- Land van herkomst:
- DE
Productomschrijving
Bulletin 450L GuardShield POC safety light curtains are unlike traditional safety light curtains, which are based on separate transmitter and receiver units. This next generation light curtain system features patented technology, which allows each transceiver to be used as a transmitter or receiver via an innovative plug-in module.
Each transceiver can be used either as a transmitter or receiver via an innovative plug-in module
Features an active protective field that senses over the entire length of a transceiver
Offers a wide range of protection heights 150…1950 mm in increments of 150 mm
Features a compact housing design 30 x 30 mm
Features an active protective field that senses over the entire length of a transceiver
Offers a wide range of protection heights 150…1950 mm in increments of 150 mm
Features a compact housing design 30 x 30 mm
450L-B Guard Shield 14mm (0.55 in.), 1800 mm (70.92 in.)
Specificaties
Kenmerk | Waarde |
|---|---|
| Range | GuardShield |
| Series | 450L |
| Beam Resolution | 14mm |
| Component Type | Transceiver |
| Safety Type | 4 |
| SIL IEC 61508 | 3 |
| PL EN ISO 13849-1 | e |
| Number of Beams | 16 |
| Protective Height | 1800mm |
| Minimum Scanning Distance | 0.5m |
| Maximum Scanning Distance | 4m |
| Maximum Response Time | <23 ms |
| Length | 1885mm |
| Height | 30mm |
| Supply Voltage | 24 V dc |
| Features | IEC 62061, IP65 Enclosure Rating TUV Certified PL e, Monitor & Troubleshoot via Connected Components Workbench Software, SIL cl3 per EN ISO 13849-1, Type 4 IEC 61496-1/-2 |
| Dimensions | 1885 x 30 x 30 mm |
| Application | Mechanical Protective Devices |
| Terminal Type | Plug-In |
| Width | 30mm |
