TE Connectivity 2437979 Series Light Curtain Receiver, 75 Beam(s), 14 mm Resolution

Bekijk alle Light Curtains

Subtotaal (1 eenheid)*

€ 1.990,35

(excl. BTW)

€ 2.408,32

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Op voorraad
  • Plus verzending 1 stuk(s) vanaf 10 maart 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks
Per stuk
1 +€ 1.990,35

*prijsindicatie

RS-stocknr.:
283-540
Fabrikantnummer:
2437979-7
Fabrikant:
TE Connectivity
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

TE Connectivity

Product Type

Light Curtain

Series

2437979

Beam Resolution

14mm

Component Type

Receiver

Safety Type

Type 4

Standards/Approvals

PL e

Number of Beams

75

Protective Height

760mm

Maximum Supply Voltage

24V dc

Minimum Scanning Distance

3m

Maximum Scanning Distance

6m

Maximum Response Time

11ms

Width

28 mm

Length

30mm

Height

813mm

Terminal Type

Screw

Land van herkomst:
IT

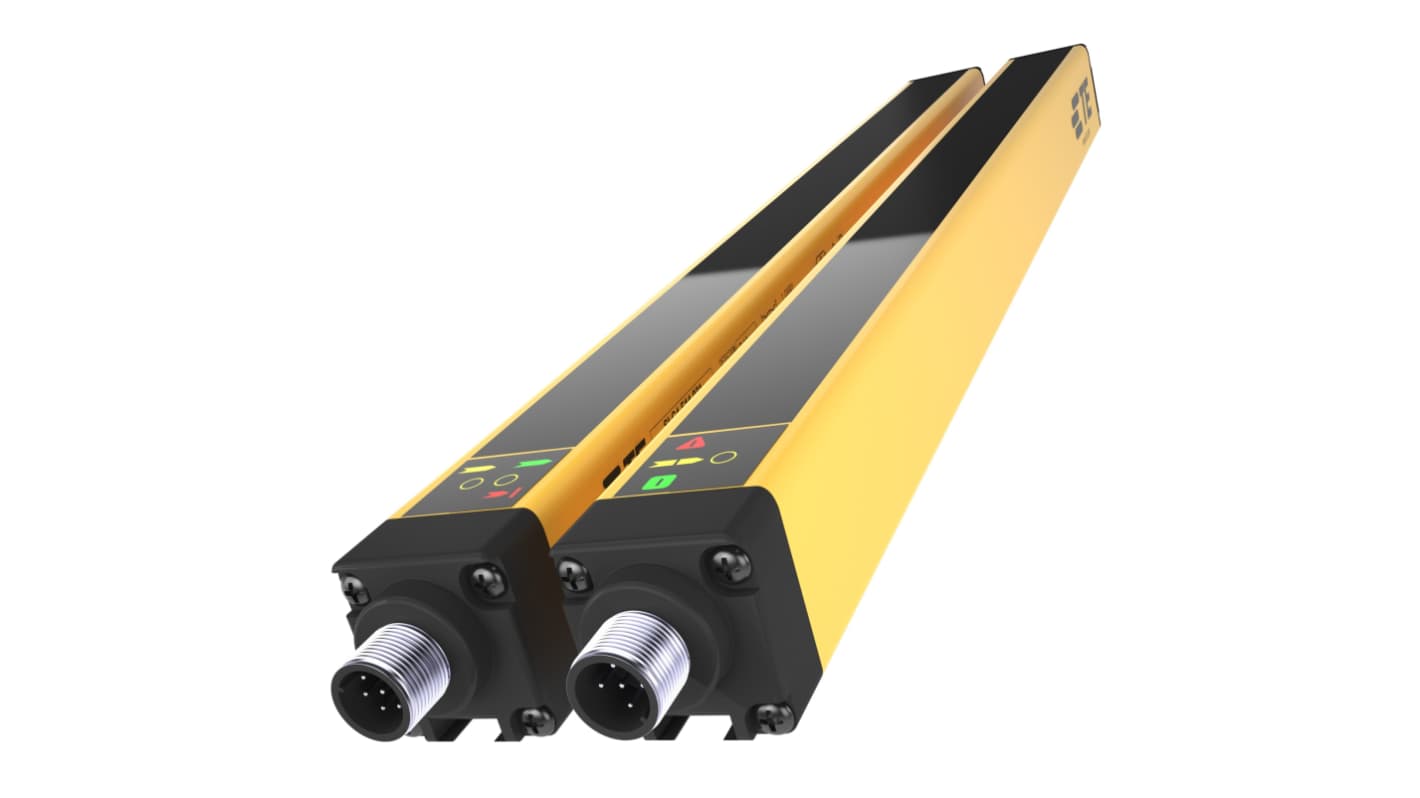

The TE Connectivity Safety light curtain (SLC) is compact with competitive performance and innovative features. Includes models with integrated safety functions, including self-monitoring of static outputs, control of external contactors (EDM) and selectable automatic/ manual restart. 2 safety PNP static outputs. Easy connection and installation due to M12 connectors and the use of unshielded cables.

Reliable and compact

High ingress protection ratings

Fast and simple installation

Compact size

Robustness
