- RS-stocknr.:
- 170-9840
- Fabrikantnummer:
- LXZ2-5070
- Fabrikant:
- Lumileds
Dit product is momenteel niet beschikbaar voor nabestelling.
We hebben dit product helaas niet op voorraad en het is op dit moment niet beschikbaar voor nabestelling.
Toegevoegd
Prijs Per stuk (op een rol 2000)
€ 0,767
(excl. BTW)
€ 0,928
(incl. BTW)
Aantal stuks | Per stuk | Per reel* |
2000 + | € 0,767 | € 1.534,00 |
*prijsindicatie |
- RS-stocknr.:
- 170-9840
- Fabrikantnummer:
- LXZ2-5070
- Fabrikant:
- Lumileds
Datasheets
Wetgeving en conformiteit
- Land van herkomst:
- MY
Productomschrijving

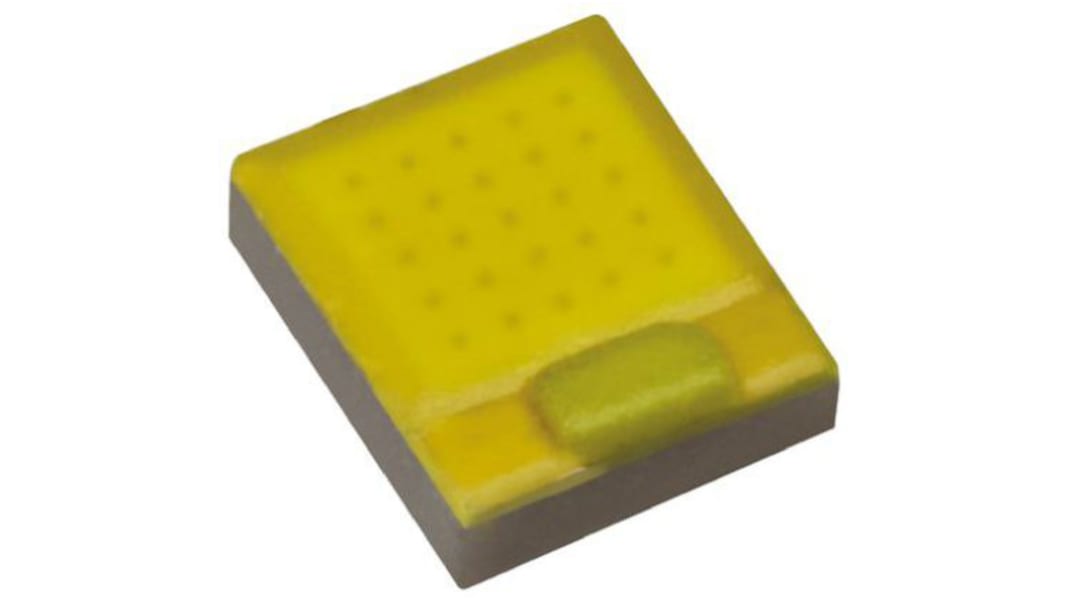

Lumileds LUXEON Z ES Series LEDs
The LUXEON Z ES family of micro sized illumination grade LEDs, from Lumileds, provides high lumen density with exceptional design flexibility and precise optical control. The tiny 1.6 x 2mm footprint (75% smaller when compared to standard 3535 packages) allows very close packing of LEDs for a smaller LES (Light Emitting Surface). As well as this, the LUXEON Z ES LED does not have a dome lens, providing better optical coupling and hence excellent beam angle control and superior colour over angle. Tested and binned at real world conditions of 700mA at 85°C, LUXEON Z ES LEDs are an ideal choice for indoor and outdoor light sources requiring superior beam angles, higher efficiency and lower costs.
Micro size undomed SMT package: 1.6 x 2.0 x 0.68 mm
Hot tested and binned at 85°C and 700mA
Drive current: 1A maximum
Freedom from Binning
3 and 5 step MacAdam Ellipse versions available (Parts with CRI lower than 70 will not have a SDCM value designated and all parts will be within 5 step MCE)
Low thermal resistance: 3°C/W
Vf (typical): 2.85V leading to higher lm/W
TVS ESD protection
Applications include: Indoor lighting, retrofit LED lamps - MR16, PAR, GU10 and candle, also high-flux street light modules, specialty lighting and architectural lighting
Hot tested and binned at 85°C and 700mA
Drive current: 1A maximum
Freedom from Binning
3 and 5 step MacAdam Ellipse versions available (Parts with CRI lower than 70 will not have a SDCM value designated and all parts will be within 5 step MCE)
Low thermal resistance: 3°C/W
Vf (typical): 2.85V leading to higher lm/W
TVS ESD protection
Applications include: Indoor lighting, retrofit LED lamps - MR16, PAR, GU10 and candle, also high-flux street light modules, specialty lighting and architectural lighting
Visible Light LEDs, Lumileds
Specificaties
Kenmerk | Waarde |
---|---|
LED Colours | White |
Package Type | 2016 (0806) |
Mounting Type | Surface Mount |
Number of LEDs | 1 |
Forward Voltage | 2.85 V |
Number of Pins | 2 |
Viewing Angle | 120 ° |
Luminous Flux | 245 lm |
Lens Shape | Rectangle |
Series | LUXEON Z ES |
Dimensions | 1.64 x 0.68 x 2.04mm |
Colour Temperature | 5000K |
