Hirschmann Circular Connector, 4 Contacts, Cable Mount, M8 Connector, Socket, Female, IP67, E Series
- RS-stocknr.:
- 231-1239
- Fabrikantnummer:
- 933367100 ELKA 4008 V
- Fabrikant:
- Hirschmann
318 op voorraad - levertijd is 1 werkdag(en).
Toegevoegd
Prijs Per stuk
€ 20,99
(excl. BTW)
€ 25,40
(incl. BTW)
| Aantal stuks | Per stuk |
| 1 - 4 | € 20,99 |
| 5 - 9 | € 19,96 |
| 10 - 49 | € 18,89 |
| 50 + | € 17,88 |
- RS-stocknr.:
- 231-1239
- Fabrikantnummer:
- 933367100 ELKA 4008 V
- Fabrikant:
- Hirschmann
Wetgeving en conformiteit
- Land van herkomst:
- DE
Productomschrijving
Belden Hirschmann Circular Connector, 3A Current Rating, PA Housing - E Series - 933367100 ELKA 4008 V
To get your industrial equipment up to speed with info from sensors, choose this circular connector from Belden Hirschmann. Its four-contact design means it controls multiple circuits simultaneously, reducing wiring needs and keeping your setup neat. The contacts are made of conductive copper and tin to ensure a reliable connection. The adapter's durable PA housing and contact bearer provide impact protection as well as insulation to prevent any shocking surprises.
Features & Benefits
• Current rating of 3A for use in low-current-consuming applications
• IP67 rating shows that it's fully dustproof and withstands immersion in up to 1m of water for 30 minutes
• Viton/NBR O-ring to block out dust and contaminants for optimal performance
• IP67 rating shows that it's fully dustproof and withstands immersion in up to 1m of water for 30 minutes
• Viton/NBR O-ring to block out dust and contaminants for optimal performance
Applications
• Robotics systems
• Food processing equipment
• Assembly lines
• Food processing equipment
• Assembly lines

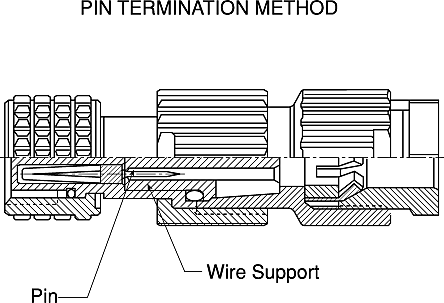

How do I terminate cables to this connector?
You can link this adapter to wires with a simple pin-penetration mechanism. This method doesn't need wire-stripping, saving time and hassle.
Specificaties
Kenmerk | Waarde |
|---|---|
| Number of Contacts | 4 |
| Mounting Type | Cable Mount |
| Connector Size | M8 |
| Plug/Socket | Socket |
| Contact Gender | Female |
| Termination Method | IDC |
| IP Rating | IP67 |
| Current Rating | 3A |
| Series | E |
| Body Orientation | Straight |
| Voltage Rating | 30 V |
| Mating Type | Threaded |
| Shell Size | M8 |
| Housing Material | Polymer |
| Strain Relief | Yes |
| Contact Plating | Gold |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
| Contact Material | Brass |
