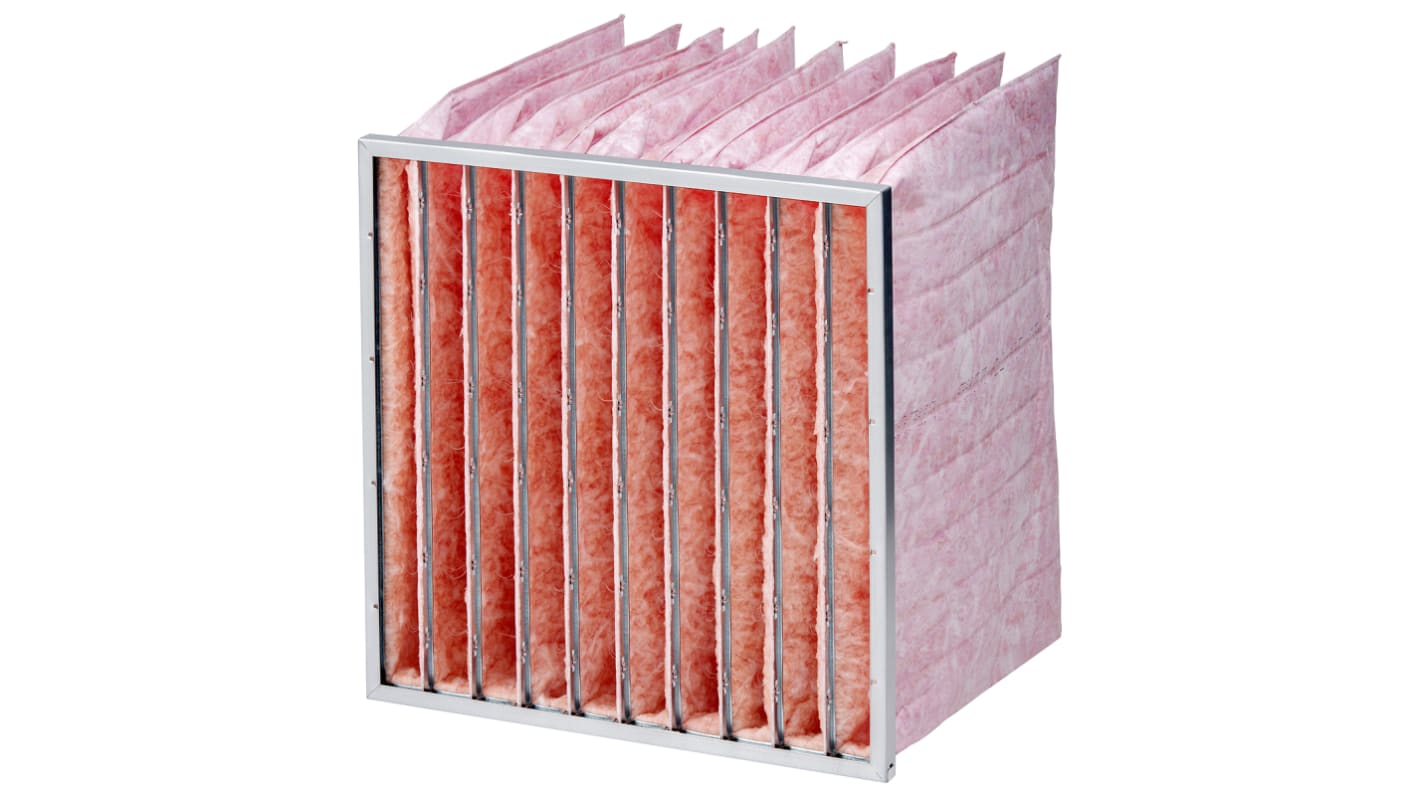

Camfil HI-FLO Bag Filter, Glass Fibre Media, F9 Grade, 592 x 287 x 520mm, Media Area 3.1m2

  • RS-stocknr. 880-2475
  • Fabrikantnummer 1329.40.00
  • Fabrikant Camfil
Datasheets
Wetgeving en conformiteit
N.v.t.
Productomschrijving

Hi-Flo P Bag Filters

The Camfil Hi-Flo P filter is a large surface area high efficiency pocket filter. The Hi-Flo P incorporates high-lofted air-laid microfibre glass media to ensure reliable efficiency over the entire lifetime of the filter. Typical applications include air handling for air conditioned rooms and prefiltration for clean rooms.

Large filter surface area
Low pressure drop
Suitable for 1st or 2nd filtration stages
Comprehensive range of standard sizes
New pocket design for better air distribution
Conical pockets
Controlled media spacing (CMS)
25mm galvanised sheet steel frame
Media: felt glass fibre
Efficiency: EN779:2012: M6, F7, F9
Final pressure drop: 450 Pa (200 Pa recommended for M6 / F7 & F9 or 300Pa in acordance with EN13053)
Maximum flow rate: 1.25 x nominal flow
Maximum continuous operating temperature: 70 °C
Fast, simple and safe filter installation
Certified performance

Approvals

EN779:2012

Camfil HVAC Air Filters

Specificaties
Kenmerk Waarde
Filter Type Bag
Actual Dimensions 592 x 287 x 520mm
Media Area 3.1m²
Number of Pockets 5
Filter Grade F9
Maximum Air Flow 1700m³/h
Initial Pressure Drop 160Pa
Final Pressure Drop 450Pa
Case Material Galvanised Steel
Media Material Glass Fibre
Series HI-FLO
Actual Height 592mm
Actual Width 287mm
Actual Depth 520mm
12 op voorraad - levertijd is 1 werkdag(en).
Prijs Each (In a Pack of 4)
41,008
(excl. BTW)
49,62
(incl. BTW)
Aantal stuks
Per stuk
Per pak*
4 +
41,008 €
164,032 €
*prijsindicatie
