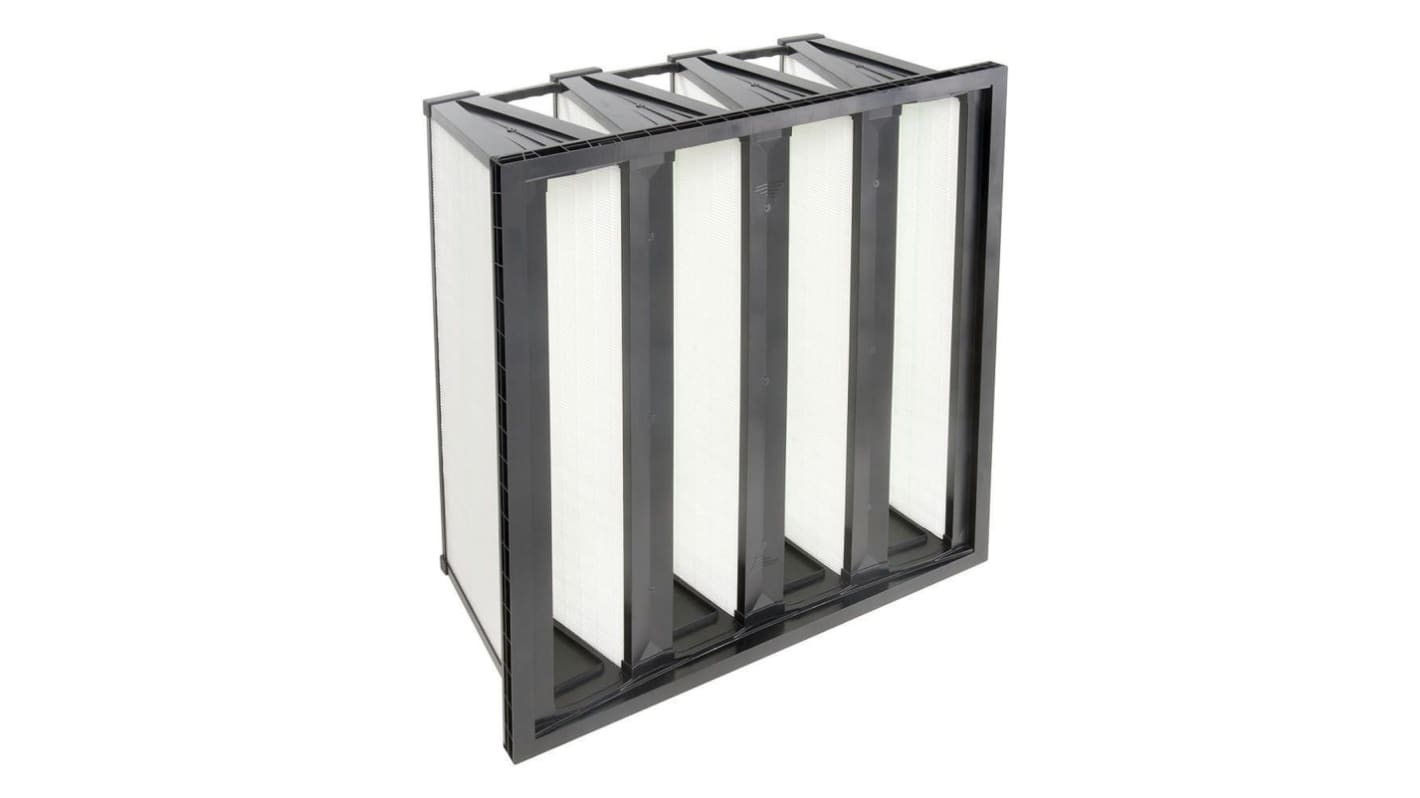

Camfil Opakfil ES Compact V-Filter, Glass Fibre Media, F7 Grade, 287 x 592 x 296mm, Media Area 8m2

  • RS-stocknr. 880-2444
  • Fabrikantnummer 2511.52.5001
  • Fabrikant Camfil
Datasheets
Wetgeving en conformiteit
N.v.t.
Productomschrijving

Opakfil ES Compact Bag Filters

Camfil Opakfil ES compact bag filters provide high efficiency filtration combined with very low energy consumption and compact size. Opakfil ES can be used in any air conditioning application including preparatory filtration in cleanrooms and is also especially suitable for low-energy buildings.

High efficiency
Low energy costs
Compact size
Long operating life
Light and robust
Less filter changes
Aerodynamic radial design
Incinerable
Polypropylene and ABS frame; flange thickness 25 mm
Glass fibre media
Hot melt bead separators
Polyurethane sealant
Efficiency EN779:2012
Filter class: M6, F7, F8, F9
Recommended final pressure drop: 450 Pa (suggested economical change point 300 Pa)
Temperature: 70ºC maximum in continuous service

Standards

Tested in accordance with EN779:2012
Eurovent Certified

Camfil HVAC Air Filters

Specificaties
Kenmerk Waarde
Filter Type Compact V-Filter
Actual Dimensions 287 x 592 x 296mm
Media Area 8m²
Filter Grade F7
Maximum Air Flow 1700m³/h
Initial Pressure Drop 65Pa
Final Pressure Drop 450Pa
Colour White
Case Material ABS, Polypropylene
Media Material Glass Fibre
Actual Depth 296mm
Series Opakfil ES
Actual Height 287mm
Actual Width 592mm
