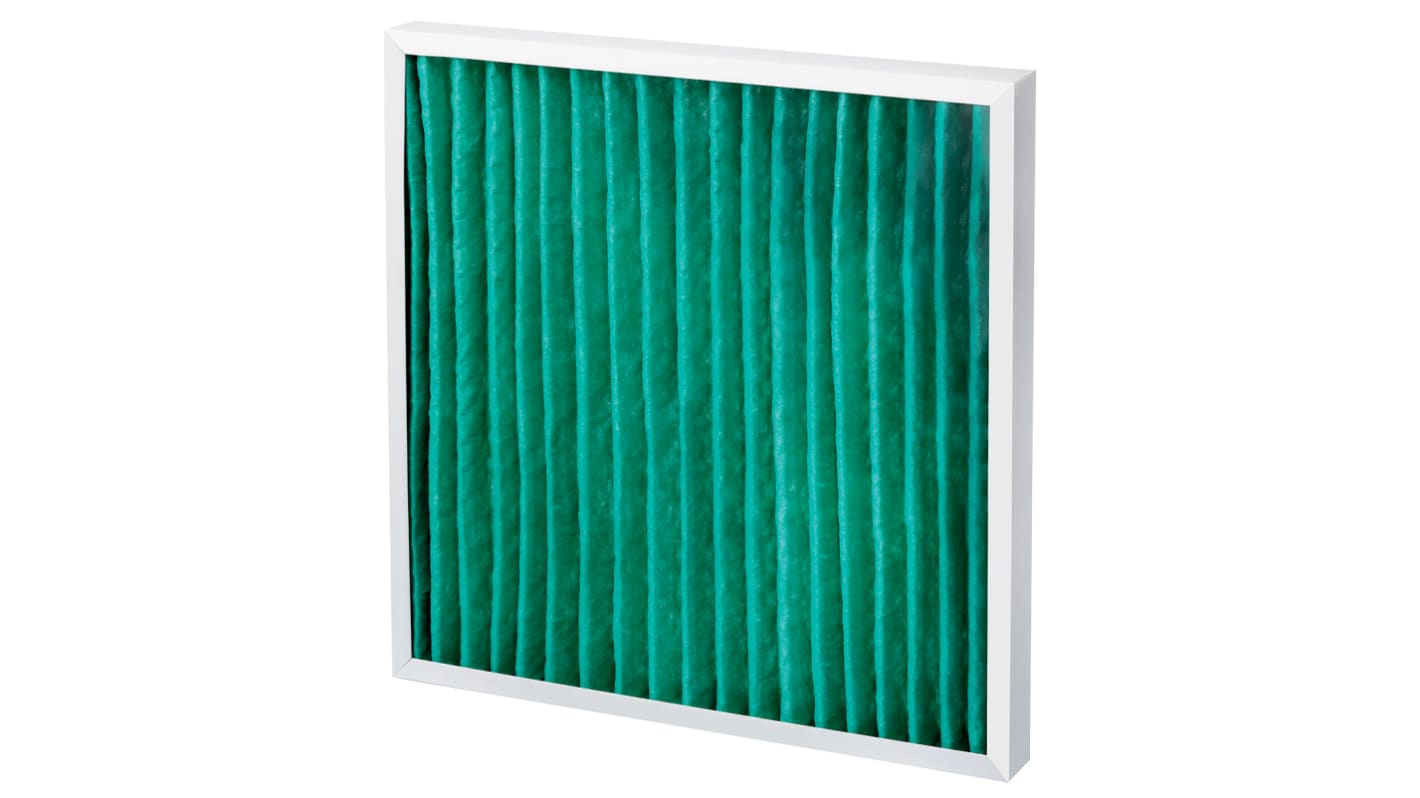

Camfil AeroPleat Green Pleated Panel Filter, Cotton, Synthetic Fibre Media, G4 Grade, 592 x 592 x 48mm, Media Area 1.2m2

  • RS-stocknr. 880-2407
  • Fabrikantnummer 1048.50.01
  • Fabrikant Camfil
Datasheets
Wetgeving en conformiteit
N.v.t.
Productomschrijving

Camfil Panel Filter

The Camfil AeroPleat green panel G4 grade filter exhibits a low-pressure drop and the feature robust construction for reliable operation. It is used for prefiltration for large particles and in air handling units.

Features and Benefits

Sturdy plastic frame
Water-resistant
Incinerable
Gravimetric filter
ABS construction
Media area is 1.2m²
Media material is cotton, synthetic fibre
Maximum airflow is 3400m³/h
Initial pressure drop is 55Pa
Final pressure drop is 250Pa
Case material is ABS plastic
Actual dimensions is 592mm x 592mm x 48mm
Robust construction for reliable operation

Applications

ABS construction
Air handling units

Specificaties
Kenmerk Waarde
Filter Type Pleated Panel
Actual Dimensions 592 x 592 x 48mm
Media Area 1.2m²
Filter Grade G4
Maximum Air Flow 3400m³/h
Initial Pressure Drop 55Pa
Final Pressure Drop 250Pa
Colour Green
Case Material ABS Plastic, Green
Media Material Cotton, Synthetic Fibre
Actual Depth 48mm
Series AeroPleat Green
Actual Width 592mm
Actual Height 592mm
Sorry, we konden onze voorraadniveaus nu niet controleren. Probeer de pagina te vernieuwen.
Prijs Each (In a Pack of 5)
29,648
(excl. BTW)
35,874
(incl. BTW)
Aantal stuks
Per stuk
Per pak*
5 +
29,648 €
148,24 €
*prijsindicatie
