RS PRO Carbon Monoxide Gas Detector, Backlit LCD

Datasheets
Wetgeving en conformiteit
Conform
Land van herkomst: TW
Productomschrijving

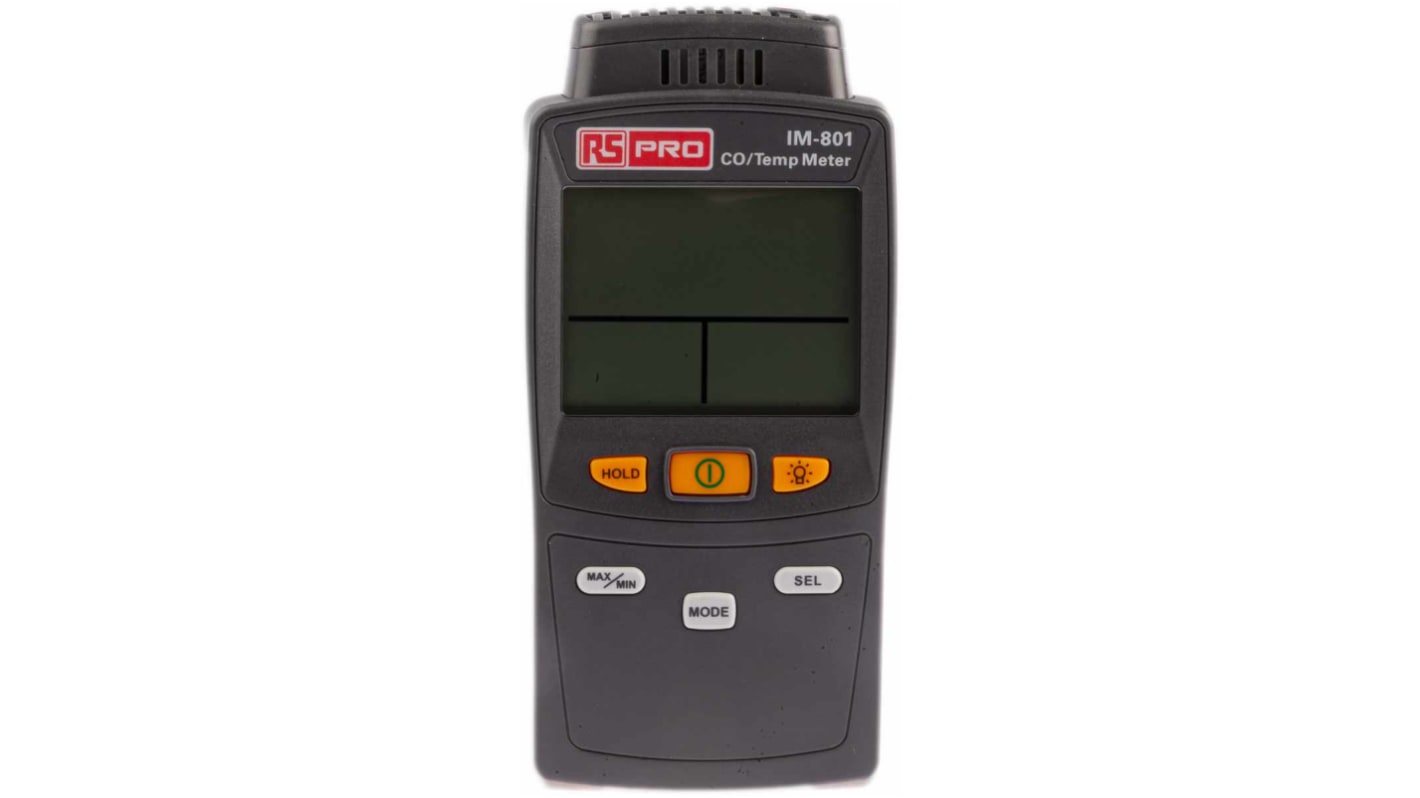

RS PRO Carbon Monoxide Gas Detector IM-801

From the trusted RS PRO brand, this carbon monoxide meter IM-801 is a great value instrument for measuring CO levels up to 1000 ppm. With a backlit LCD display screen and an easy-to-use interface, this detector allows you to monitor and meter temperature and CO levels in an environment.With a ninety-hour battery life, and an auto power-off function, the portable carbon monoxide monitor is ideal for on-the-go applications.Features and Benefits 4 digits backlit LCD with maximum 1000 counts Dual display of the readings for CO and temperature CO range 0 ∼ 1000 ppm Temperature range -20 ∼ 50 ºC (-4∼122 ºF) Easy to calibrate at 100 ppm or 500 ppm Max/Min/Average hold Data hold Low battery indication Auto power off with disable function Adjustable alarm Dimensions 156 ' 73 ' 35 mm Weight approximately 250 g (without batteries)CO Measurement Range 0 ∼ 1000 ppm Resolution ±1 ppm Accuracy ±5% + 2 ppm Repeatability < 2% Response time < 30 seconds Zero drift in long term < 5 ppm Sensitivity drift < 5% (per year) Typical sensor life 3 yearsTemperature Measurement Range -20 ∼ 50 ℃ / -4 ∼ 122 ℉ Resolution ±0.1℃/±0.1℉ Accuracy ±1.0℃/±1.8℉ApplicationsThis portable carbon monoxide detector can be used to detect potentially hazardous levels of carbon dioxide. Boiler plant room Automotive industries Welding Power plants Refrigeration plants Textile industryGas detection: Carbon monoxide detectionCarbon monoxide is a deadly toxic gas that has no smell and cannot be seen or tasted. Its presence is lethal causing death and injury, it can be caused by poorly installed or maintained heating appliances, chimneys, flues and gas-fired cooking appliances. Even low levels of CO can impair judgment and greatly increase the risk of accidents and injury in motorists and machine operators. See the 'key characteristics' table for details of the carbon monoxide level and their effects.Why RS PRO?RS PRO aims to be your go-to brand when it comes to reliability, quality, and affordability. We source high-quality tools and parts from trusted sources and employ expert testing to build a brand you can rely on.When it comes to test and measurement equipment, RS PRO has an extensive range of solutions. From electrical to environmental measurement, we offer calibrated and multi-function instruments to suit your needs.

Certifications

ANSI/ESD S20.20:2014 BS EN 61340-5-1:2007

Gas Detection: Carbon Monoxide Detection

Carbon Monoxide is a deadly toxic gas that has no smell and cannot be seen or tasted. Its presence is lethal causing death and injury, it can be caused by poorly installed or maintained heating appliances, chimneys, flues and gas fired cooking appliances.,Even low levels of CO can impair judgement and greatly increase risk of accidents and injury in motorists and machine operators. See "key characteristics" table for details of carbon monoxide level and their effects.

Specificaties
Kenmerk Waarde
Gases Detected Carbon Monoxide
Accuracy ±5 %
Response Time <30 s
Application Environmental
Meter Type Handheld
Display Type Backlit LCD
Power Source Battery
Battery Type 4 x AAA
Battery Life 90 h
Dimensions 156 x 73 x 35mm
Weight 250g
Width 73mm
Length 156mm
Height 35mm
Minimum Operating Temperature -20°C
Maximum Operating Temperature +50°C
Model Number p IM-801
81 op voorraad - levertijd is 1 werkdag(en).
Prijs Each
124,00
(excl. BTW)
150,04
(incl. BTW)
Aantal stuks
Per stuk
1 +
124,00 €
