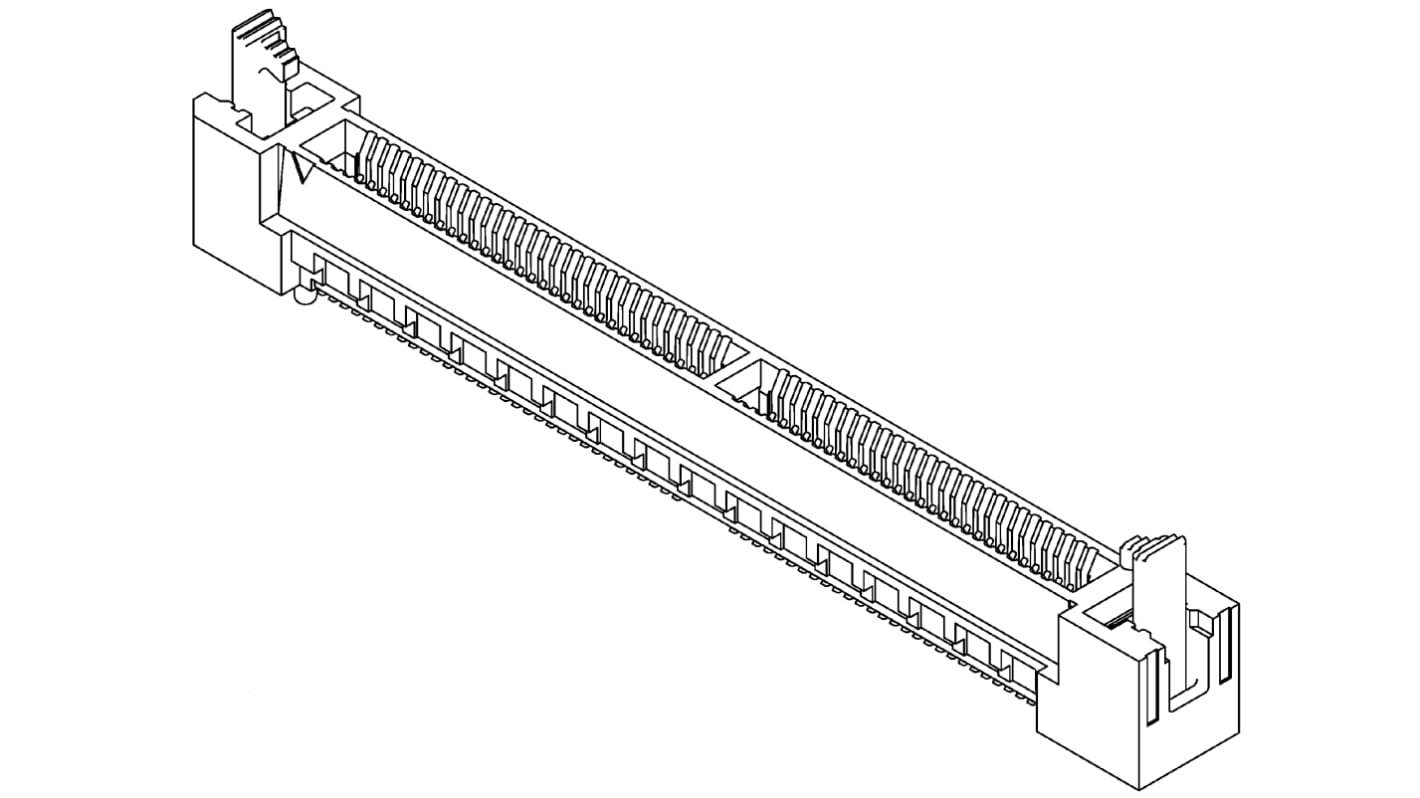

Samtec HSEC8-DV Series, Female PCB Edge Connector SMT, 120 Way, 2 Row, 0.8mm Pitch, 3.1A

  • RS-stocknr. 767-6831
  • Fabrikantnummer HSEC8-160-01-L-DV-A
  • Fabrikant Samtec
Datasheets
Wetgeving en conformiteit
Conform
Productomschrijving

HSEC8 Series Vertical Edge Rate Card Sockets

These HSEC8 Series SMT Vertical Edge Rate Card Sockets from samtec take 1.60 mm cards with a nominal insertion depth of 3.15 mm. The contacts of this range of HSEC8 Series SMT Vertical Edge Rate Card Sockets have 0.25 μm gold plating with Matte Tin plating on the tails. An Alignment Pin is included in the design of these HSEC8 Series SMT Vertical Edge Rate Card Sockets.

Note

The HSE8 SMT Vertical Edge Rate Card Sockets with 80, 100 and 160 ways have a central keying feature with the 20, 40 and 60 ways having none.

Edge Connectors - Samtec

Specificaties
Kenmerk Waarde
Body Orientation Straight
Gender Female
Number of Contacts 120
Number of Rows 2
Pitch 0.8mm
Mounting Type Surface Mount
Termination Method SMT
Contact Plating Gold over Nickel
Contact Material Beryllium Copper
Current Rating 3.1A
Housing Material Liquid Crystal Polymer
Series HSEC8-DV
Width 5.6mm
Length 55.8mm
Depth 7.8mm
Maximum Operating Temperature +125°C
Minimum Operating Temperature -55°C
