Female Crimp Contact 46819 Series for use with 46817 Housing

  • RS-stocknr. 123-7194
  • Fabrikantnummer 46819-0013
  • Fabrikant Molex
Datasheets
Wetgeving en conformiteit
Conform
Land van herkomst: US
Productomschrijving

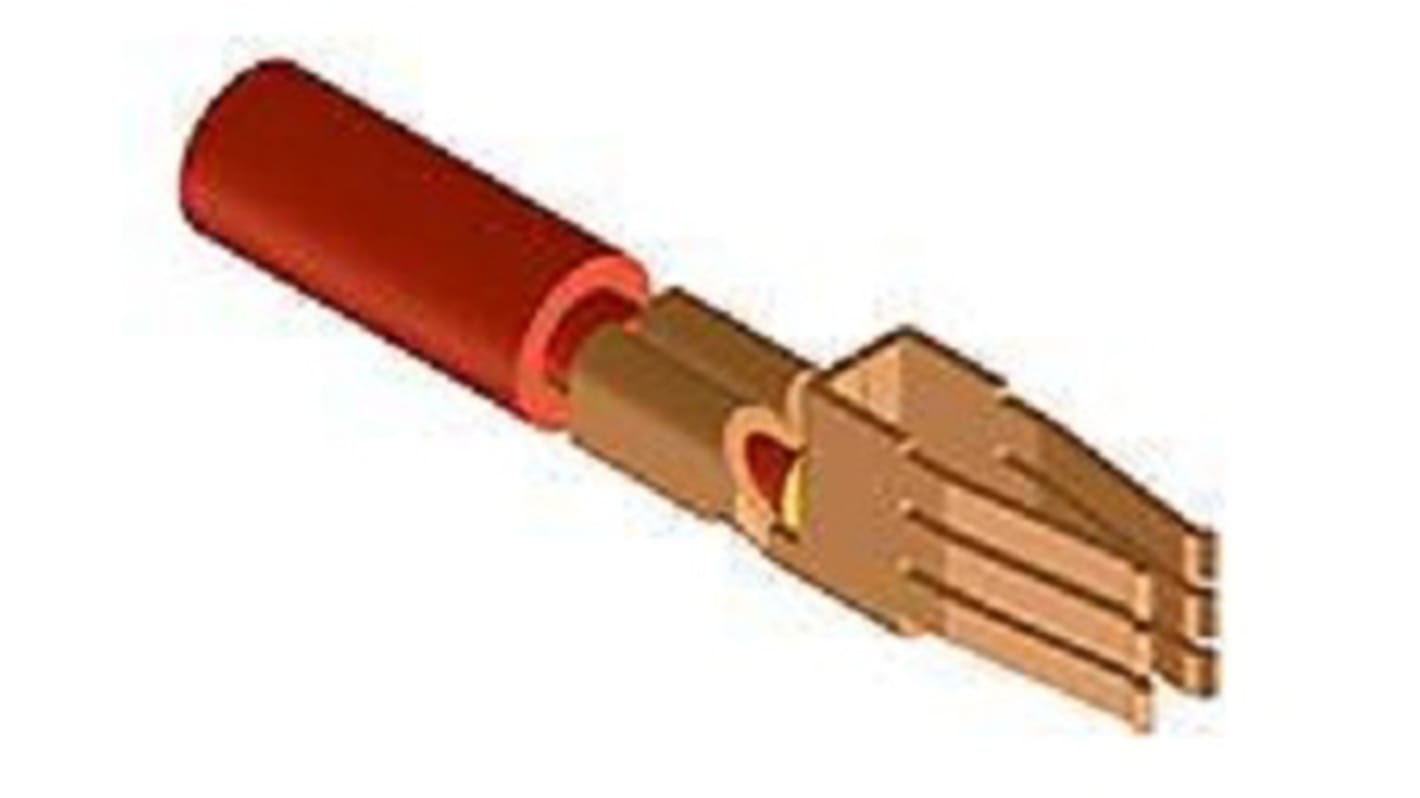

Molex EXTreme Guardian™ High Power Female Crimp Contacts

Molex 46819 series contacts from the EXTreme Guardian Power Connector System. The gold plated copper female terminals can accommodate up to 6 AWG wire providing a high 185.0A per linear inch. For suitable female housings, see typical part numbers 123-7191 and 123-7195.

Features and Benefits

Gold plated
Relatively small 11.00 mm pitch
Low- halogen
High current capacity

Molex EXTreme Guardian™ Power Connector System

Specificaties
Kenmerk Waarde
For Use With 46817 Housing
Accessory Type Female Crimp Contact
Series 46819
185 op voorraad - levertijd is 1 werkdag(en).
Prijs Each (In a Pack of 5)
2,316
(excl. BTW)
2,802
(incl. BTW)
Aantal stuks
Per stuk
Per pak*
5 - 20
2,316 €
11,58 €
25 - 45
1,968 €
9,84 €
50 - 95
1,738 €
8,69 €
100 - 245
1,506 €
7,53 €
250 +
1,39 €
6,95 €
*prijsindicatie
