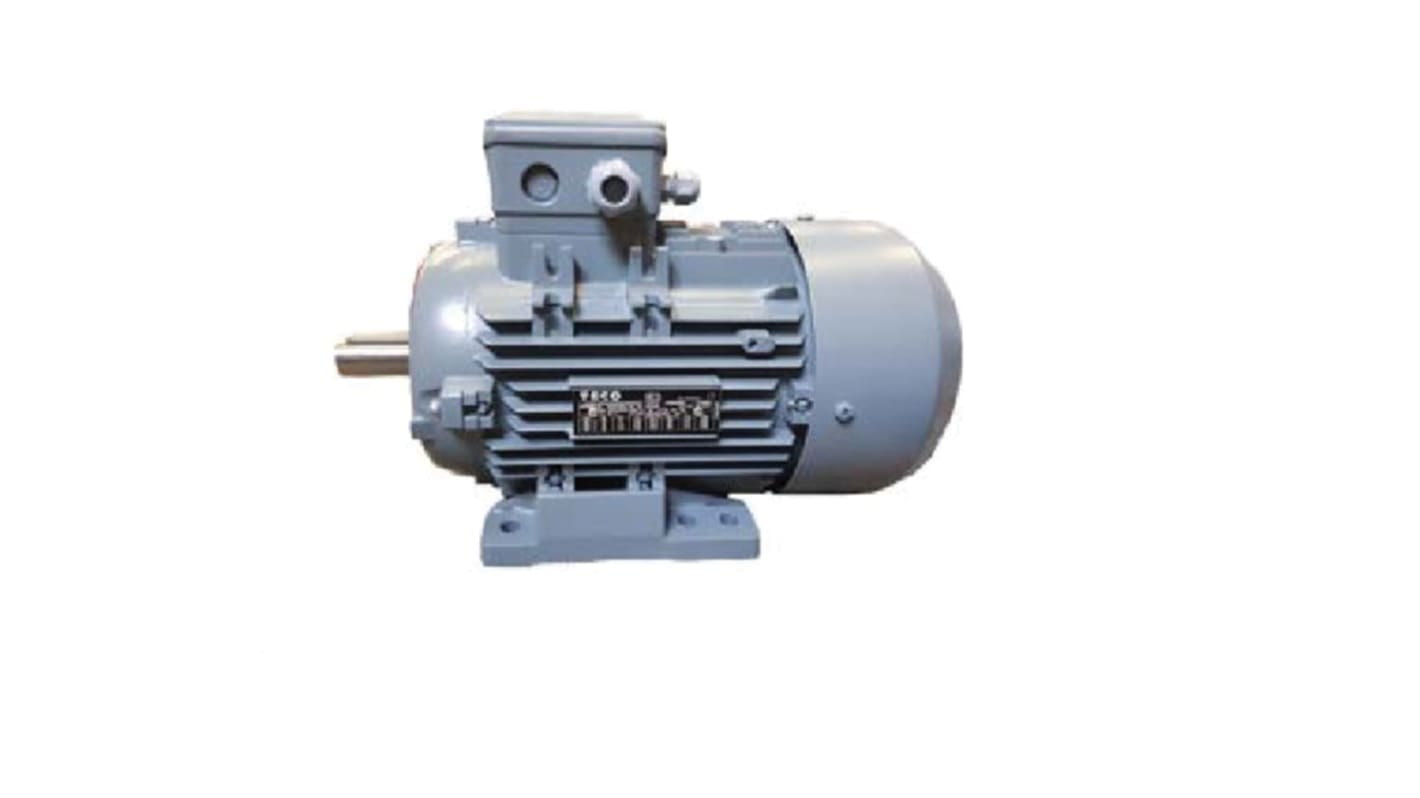

RS PRO AC Motor, 15 kW, IE3, 3 Phase, 4 Pole, 400 V, Foot Mount Mounting


Op voorraad - levertijd 3 à 5 werkdagen.
Add to Basket

Prijs Each

1.154,49 €

(excl. BTW)

1.396,93 €

(incl. BTW)

Aantal stuks

Toegevoegd

RS-stocknr.:
187-9898
Fabrikant:
RS PRO
Land van herkomst:
TR
Aantal stuksPer stuk
1 +1.154,49 €

<B>RS PRO 3 Phase Squirrel Cage Induction AC Motor</B>



<B>Features and benefits</B>



<B>Application</B>



<B>FAQs</B>


<B>How is the speed determined? </B>



KenmerkWaarde
Power Rating15 kW
Frequency Rating50Hz
Efficiency ClassIE3
Supply Voltage400 V
Phase3
Output Speed1470 rpm
Number of Poles4
Mounting TypeFoot Mount
Shaft Diameter42k6
Shaft Length110mm
Width553.5mm
Length307mm
Dimensions307 x 553.5 x 398 mm
Maximum Output Torque97.45 nm
Depth398mm
Current Rating30 A
Bearing TypeDrive End, Non Drive End
